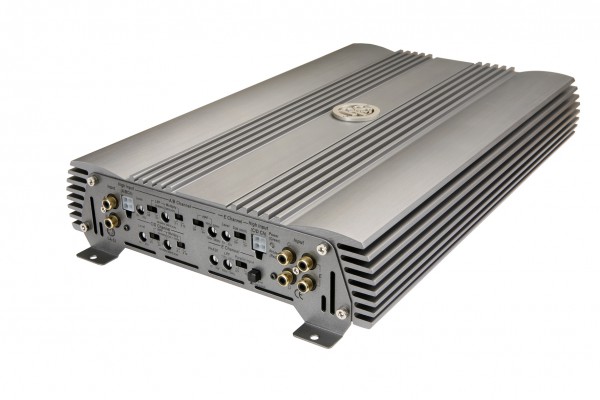

Performance CA 51 – 545 Watts 5-ch. amplifier

RRP $849

« Back to Products

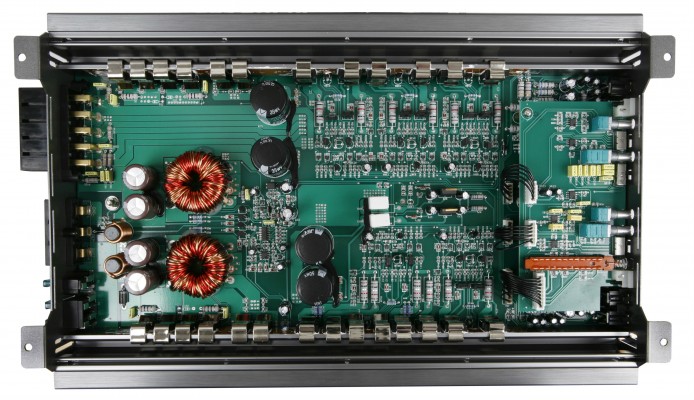

CA51 in a new exclusive design, but the inside is of the same high quality as before.

This is an amplifier suitable for full in-car entertainment systems. Nominal output of 4 x 50 Watts + 1 x 170 Watts on a mono sub channel.

  • Built-in low pass and high pass filters.
  • Variable phase shift control on the sub channel
  • Built-in protection circuits shut down the amplifier in the event of overloads.
  • High level input with auto start.
  • RMS output power @ 13,8 V, 20Hz – 20 kHz.
Number of channels 5
Amplifier class AB
Mono bridge mode 4 ohm 2 x 150 W RMS
Output power in 2 ohm 4 x 80 W RMS
Output power in 4 ohm 4 x 50 W RMS
Mono sub channel 2 ohm 225 W
Mono sub channel 4 ohm 170 W
Damping factor > 100
S/N ratio, A-weighted > 100 dB
Frequency range 10 Hz – 35 kHz
Input sensitivity 0,25 – 5 V
Input impedance > 10 kohm
Input impedance, high level 100 ohm
Filters channel A & B HP: 15-500 Hz. LP: 50-500 Hz / 05 – 5 kHz (x10)
Remote bass level control No
Low level output No
Remote phase shift control No
Phase control for subwoofers 0-180 degrees cont. variable
High level input with auto start Yes
Power consumption (idle) 1 A
Power consumption (max) 90 A
Rec. power cable Minimum 4AWG / 21 mm2
Fuses 3 x 30 A
Dimension (W x D x H) 250 x 419 x 67 mm / 9,84 x 16,5 x 2,63″
Weight 5,3 kg / 11,7 lb
