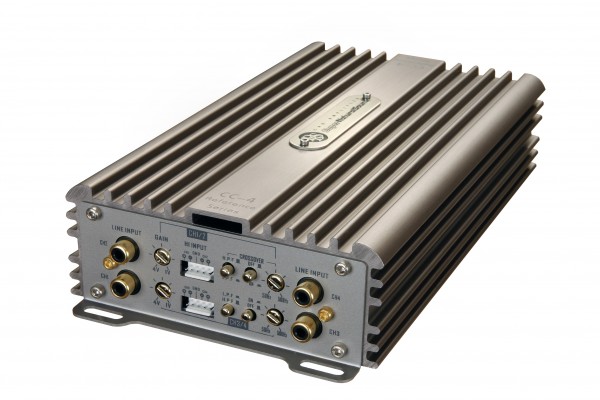

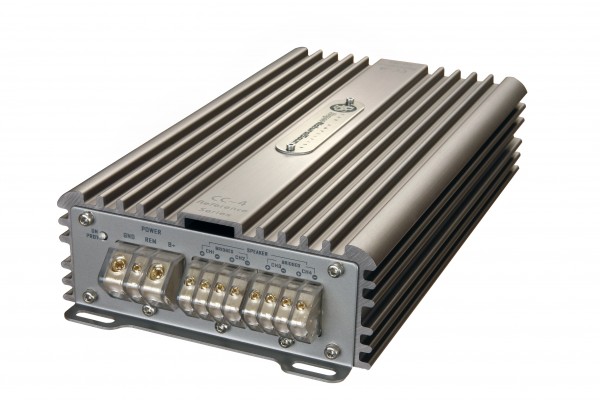

Reference CC-4 – 4 x 70 Watt amplifier

RRP $449

« Back to Products

CC-4 is a small and powerful amplifier with power output of 4 x 70 WattsRMS, and in mono bridge-connection, it puts out all of 2 x 140 Watts. A good sounding amplifier for both amateurs and professionells.

– Built-in/switchable low pass and high pass filters.
– Damping factor >250
– Signal to noise ratio, A-weighted: 110 dB
– THD at 5W, 1 kHz. <0,02%
– Built-in protection circuits shut down the amplifier in the event of overloads.
Hi level input with Auto start
Use it for a front system and a subwoofer.

SQ tuned in England!

 Specifications
Number of channels 4
Amplifier class AB
Output power in 2 ohm 4 x 70 Watt
Output power in 4 ohm 4 x 50 Watt
Mono bridge mode 4 ohm 2 x 140 Watt
Damping factor >250
S/N ratio, A-weighted >110 dB
Frequency range 10 Hz – 50 kHz
Input sensitivity 1 – 4 Volt
Input impedance 6 kohm
Input impedance, high level 45 ohm
High level input with auto start Yes
Remote bass level control No
Low level output No
Remote phase shift control No
Filters channel A & B HP 50 – 500 Hz, LP 50 – 500 Hz
Filters channel C & D HP 50 – 500 Hz, LP 50 – 500 Hz
Power consumption (idle) 0,5 A
Power consumption (max) 40 A
Rec. power cable 16 sq mm ( 5 AWG)
Fuses 2 x 20 A
Dimension (W x D x H) 129 x 250 x 51 mm (5,07″ x 9,85″ x 2″)
Weight 1,8 kg
EAN Bar code 7331644329404
