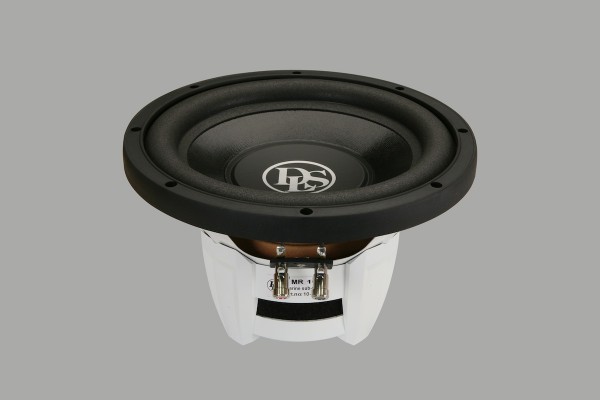

MR10D – 10″ marine subwoofer

MR10D – 10″ marine subwoofer

RRP $329

MR10D is a powerful 10″ subwoofer for marine use. Has a powerful upper surround, double spiders and doble magnet system.

  • Can be used “open air” but works well in both sealed and vented enclosures.

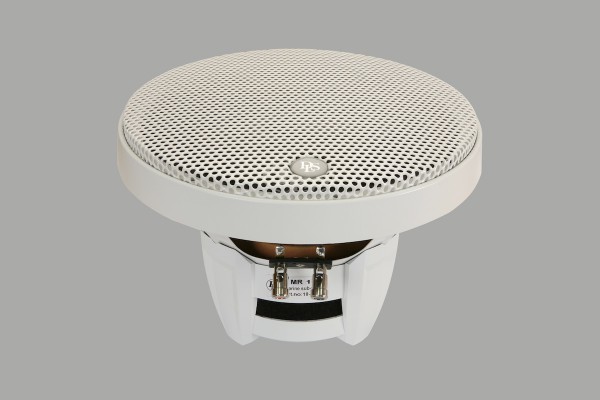

  • The MG10 protective grille with aluminium mesh is included.
Description / type 10″ / 25 cm subwoofer
Impedance 4 ohm
Power handling capacity 180 W
Max power handling capacity 360 W
Peak power 500 W
Frequency range 25 – 2000 Hz
Sensitivity 86,5 dB (1W/1m)
Outer diameter 270 mm / 10,63″
Mounting depth 153 mm / 6,02″
Mounting hole 240 mm / 9,45″
X-max +- 9 mm / 0,35″
T/S parameters
single V/C
Fs 39,9  Hz   Re 3,59  Ohm   Qms 3,19
Vas 25,5  liter   Vas 0,6  Cuft   Qes 0,55
Qts 0,47   Sd 314,6  cm²   BL 11,96
Weight 5,5 kg / 12,13 lbs
