Performance B5A – 2way system 5.25 inches

RRP $189

« Back to Products

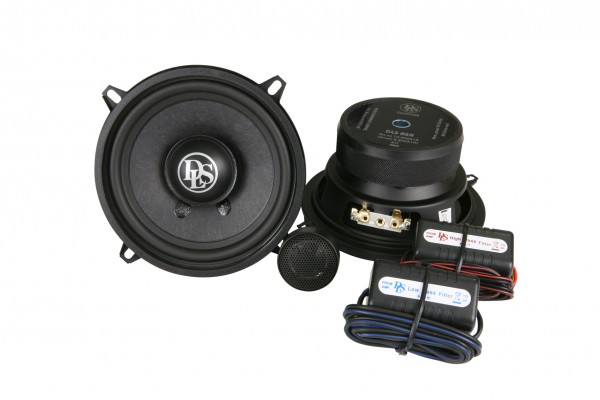

Performance series B5A is a 13 cm (5,25″) 2-way component using DLS EFR-technology for improved sound quality.

  • 16 mm separate tweeter.
  • Separate filters for bass and tweeter.
  • Selectable tweeter level.

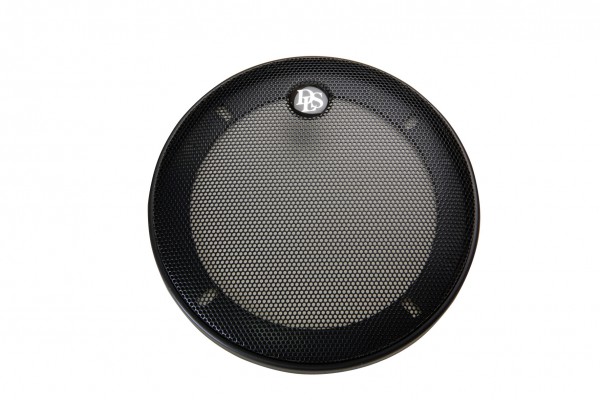

  • Grilles are included.

B5A have the DLS EFR system (Extended Frequency Response) for improved midrange.

Woofer size 13 cm (5,25″)
Tweeter 16 mm (0,6″)
Power handling capacity 50 W RMS / 80 W max / 150 W peak power
Impedance 4 ohm
Frequency range 60 – 18.000 Hz
Sensitivity 91 dB (1W/1m)
Crossover Cable filter with 6/12 dB slope (LP/HP)
Crossover point (Hz) 6000 Hz
Size of filter box 60 x 30 x 30 mm (2,36 x 1,25 x 1,25″)
Outer diameter of woofer 130 mm (5,12″)
Magnet size 80 mm (3,15″)
Mounting depth 63 mm (2,48″)
Mounting hole 117 mm (4,62″)
