Performance MCW12 – 12 inch subwoofer

RRP $229

« Back to Products

Performance series MCW12 is a 12 inch subwoofer. It is an upgraded version of the previous KW12.

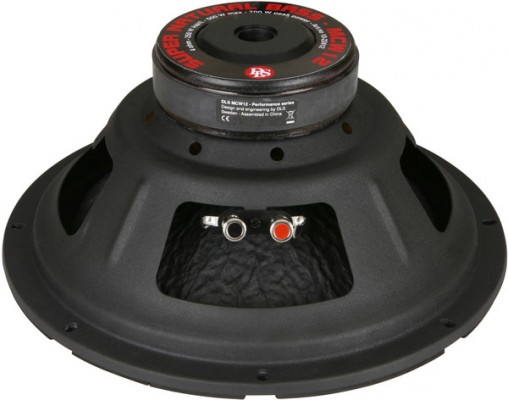

Basket in frosted black colour with push terminals.
With parameters that makes them work fine in both sealed and vented boxes.

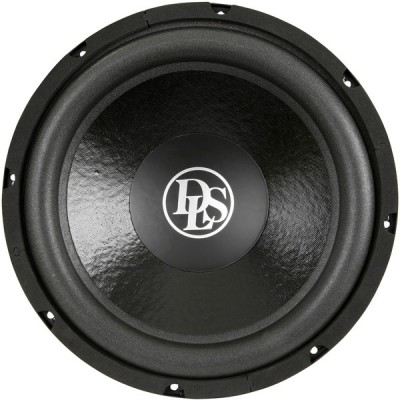

The bass drivers has a cone of strong pressed paper and a powerful magnet system creates a good bass control.

 Specifications
Woofer size 12″ (30 cm)
Outer diameter of woofer 310 mm (12″)
Mounting depth 130mm (5,12″)
Mounting hole 280 mm (11″)
X-max +- 9 mm (0,35″)
Frequency range 20 Hz – 1 kHz
Impedance 4 ohm
Sensitivity 87,75 dB
Power handling capacity 250 W
Max power handling capacity 500 W
Peak power 700 W
T/S parameters
single V/C
Fs 33,5  Hz   Re 3,0  Ohm   Qms 6,16
Vas 57  liter   Vas 2,0  Cuft   Qes 0,57
Qts 0,52   Sd 491  cm²   BL 12,13
Magnet size 120 mm (4,72″)
EAN Bar code 7331644823407
Weight 3,1 kg (6,8 lb)
