Performance XM10 – 1 x 550 Watt mono amp.

RRP $299

« Back to Products

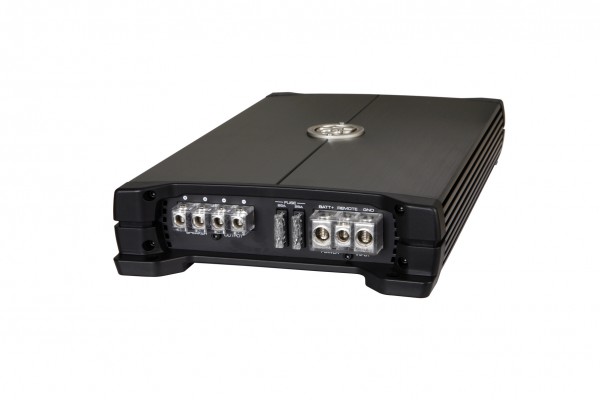

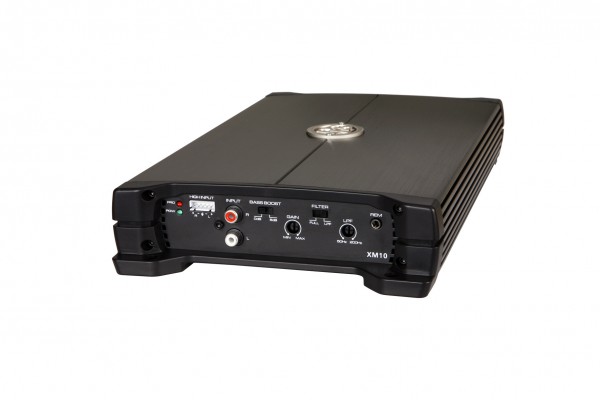

XM10 is a compact and powerful mono amplifier with peak music power of 550 Watts @ 2 ohm load.

A  popular and good power amplifier with high reliability.

  • Built-in low-pass filter for subwoofers, variable between 50 and 200 Hz. With the filter disconnected the amplifier works as a fullrange amplifier.
  • Built-in protection circuits shut down the amplifier in the event of overloads
  • BASS BOOST switch,  +6 dB.

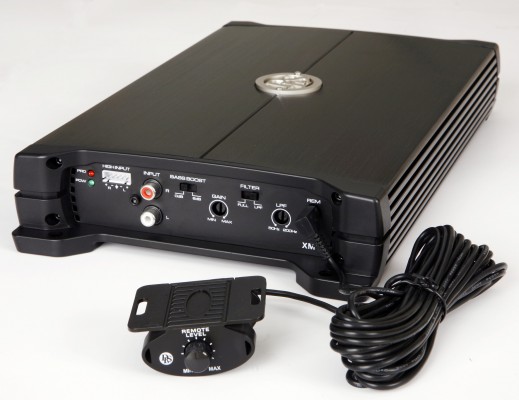

  • Remote bass level control is included
  • High level input with automatic start.
  • Cooling fan in the bottom plate.
  • RMS output power @ 14,4 V
Number of channels 1
Amplifier class AB
Peak power 550 W
Output power in 2 ohm 415 W RMS
Output power in 4 ohm 256 W RMS
Mono bridge mode 4 ohm N/A
Damping factor > 80
S/N ratio, A-weighted > 93 dB
Frequency range 10 Hz – 30 kHz
Low level output No
Input sensitivity 0,25 – 5 V
Input impedance 22 kohm
Input impedance, high level 220 ohm
Low pass filter 50 – 200 Hz
Grand bass filter Bass boost OFF – +6dB
High level input with auto start Yes
Remote phase shift control No
Power consumption (idle) 0,6 A
Remote bass level control Yes
Power consumption (max) 50 A
Integrated fan Yes
Rec. power cable Minimum 5AWG / 16 mm2
Fuses 2 x 25 A
Dimension (W x D x H) 189 x 322 x 51 mm / 7,44 x 12,67 x 2″
Weight 3 kg / 6,6 lb
