Reference R1073 – 7 x 10 inch, 3-way system

RRP $399

« Back to Products

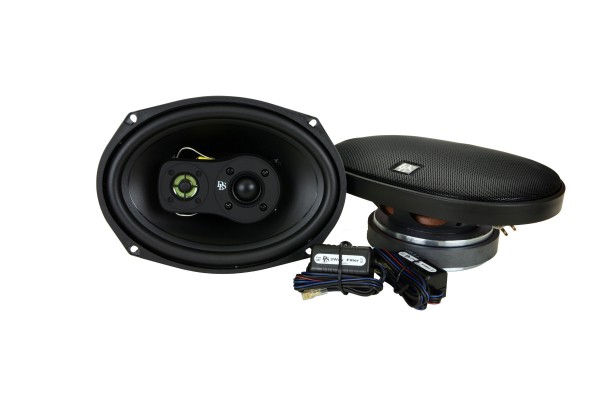

Reference series R1073 is a further development of the R1070. It is a 3-way speaker in 7 x 10″ size.

  • Fits in the same mounting hole as a 6×9″.
  • Spearate crossover box for the lowpass bass driver unit.
  • The tweeter and mid unit has an integrated crossover.
  • Powerful 145 mm magnet system to create a powerful and dynamic sound in all installations.
  • Polypropylene cone and rubber surround.

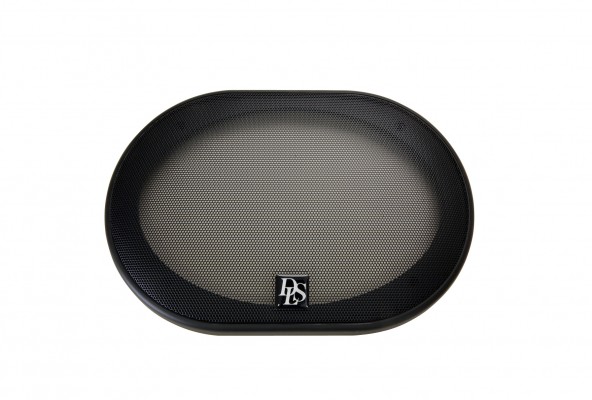

  • Grilles are included.
 Specifications
Woofer size 7 x 10″ (195 x 265 mm)
Tweeter 20 mm (08″) tweeter / 50 mm (2″) midrange
Power handling capacity 100 W RMS / 150 W max
Impedance 4 ohm
Frequency range 30 – 20.000 Hz
Sensitivity 93 dB (1W/1m)
Crossover 12dB HP / 6 dB LP
Size of filter box 60 x 30 x 30 mm
Outer diameter of woofer 195 x 265 mm (7,68 x 10,4″)
Magnet size 145 mm (5,7″)
Mounting depth 85 mm (3,35″)
Mounting hole 156 x 225 mm (6,15″ x 8,86″)
Weight 10,3 kg / 22,7 lbs
