Reference RC6.2 – 2-way component 6,5 inches

RRP $449

« Back to Products

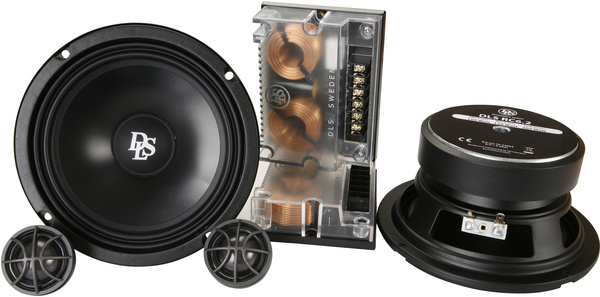

Reference series RC6.2 is a 16,5cm (6,5”) 2-way component kit with a separate 28 mm tweeter with copper rings for improved treble sound.

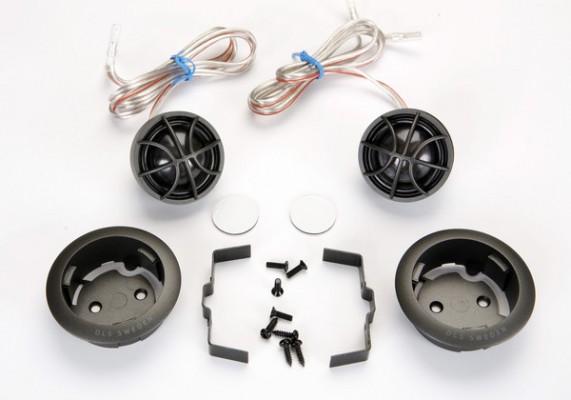

Install the tweeter on the dashboard or recessed in the door, all mounting parts are included.

The bass driver has a cone of black anodized aluminium with dual rubber edge and a 110 mm powerful magnet that guarantees a good bass control. Grilles are included.

Filter boxes with only the best components!

 Specifications
Woofer size 16,5 cm (6,5″)
Tweeter RC28, 28 mm (1,25″) silk dome tweeter with copper rings
Power handling capacity 100 W RMS / 150 W max / 300 W peak power
Impedance 4 ohm
Frequency range 50 – 25 000 Hz
Sensitivity 90 dB (1W/1m)
Crossover Filter box with 6/12 dB slope (LP/HP)
Crossover point (Hz) 4500 Hz
Size of filter box 145 x 85 x 45 mm ( 5,71 x 3,35 x 1,77″)
Outer diameter of woofer 165 mm (6,5″)
Cone material Black anodized aluminium cone
Magnet size 110 mm (4,33″)
Mounting depth 75 mm ( 3″)
Mounting hole 145 mm (5,7″)
T/S parameters
single V/C
Fs 58,7  Hz   Re 2,3  Ohm   Qms 3,5
Vas 9,65  liter   Vas 0,34  Cuft   Qes 0,76
Qts 0,62   Sd 147  cm²   BL 5,06
EAN Bar code 7331644821205
