Reference RS6N – 2-way kit, 6.5 inches

RRP $349

« Back to Products

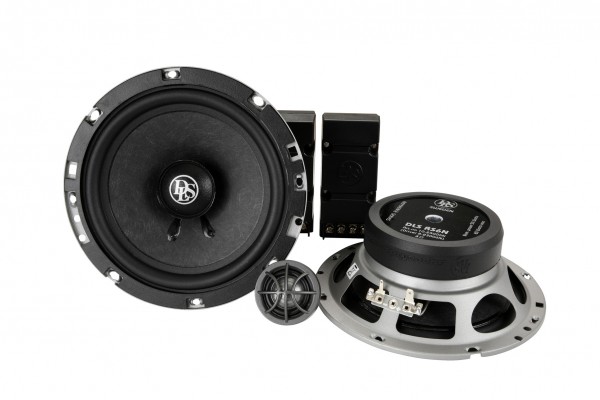

Reference series RS6N is a 16,5 cm (6,5″) 2-way components using DLS EFR-technology for improved sound quality.

A small installation depth makes them fit most vehicles. – Filter boxes with selectable tweeter level.

  • 25 mm silk dome nanoplate tweeter T25N

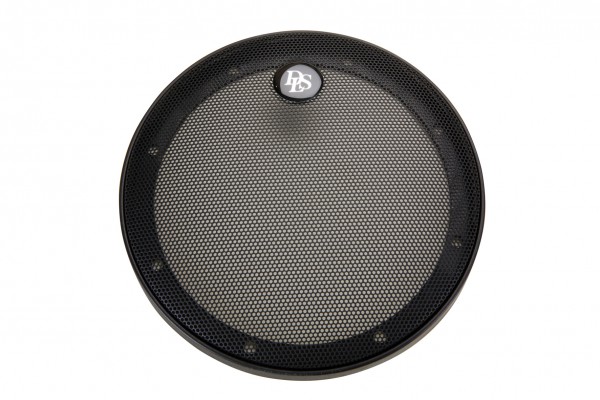

  • Grilles are included.

RS6N has spearate filter boxes for tweeter and midrange for easier installation in most vehicles.

Woofer size 16,5 cm (6,5″)
Tweeter T25, 25 mm (1″) silk dome nanoplate tweeter
Power handling capacity 50 W RMS / 80 W max
Impedance 4 ohm
Frequency range 55 – 20.000 Hz
Sensitivity 92 dB (1W/1m)
Outer diameter of woofer 165 mm (6,5″)
Magnet size 90 mm (3,54″)
Crossover Box filter with 6/12 dB slope (LP/HP)
Crossover point (Hz) 5000 Hz
Size of filter box 105 x 44 x 35 mm
Mounting depth 53 mm ( 2,09″)
Mounting hole 146 mm (5,75″)
