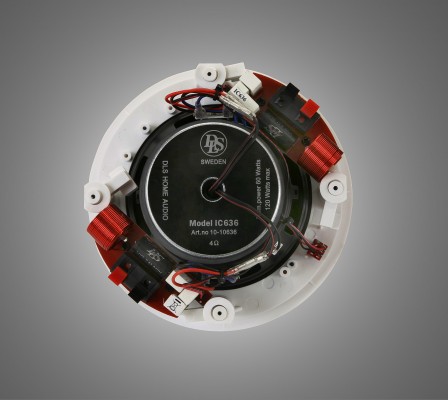

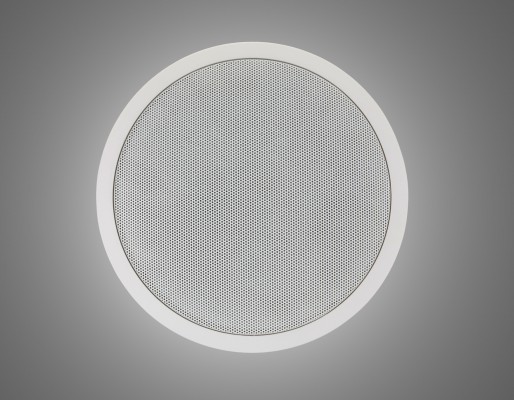

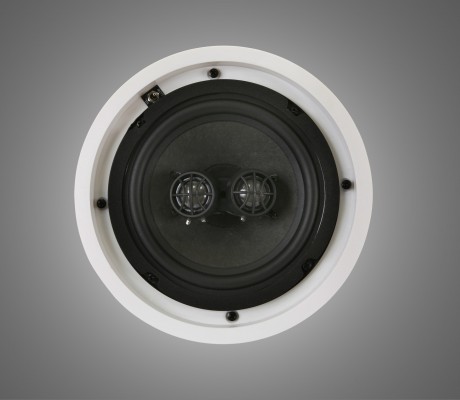

DLS IC636 for ceiling mounting. Two speakers in one!
Connect both stereo channels to a single speaker. The bass driver have dual 4 ohm voice coils and two separate angled 20mm silk dome tweeters for best stereo image. A speaker in the classical round style. Only high class components are used and the speaker can be used in most environments. This speaker has a slim visible grill edge that blends into your ceiling.

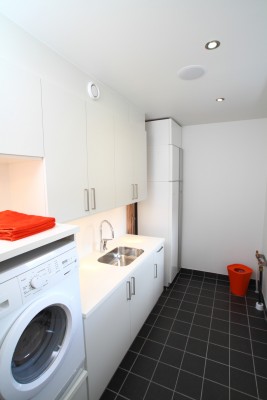

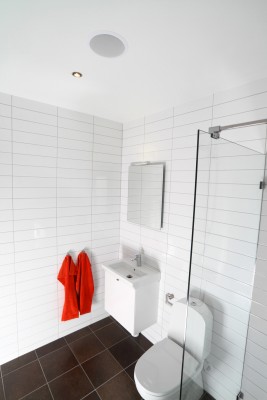

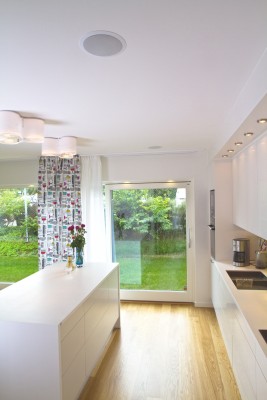

- Perfect as extra speaker in small areas like kitchen, bath rooms or small rooms where two separate speakers are difficult to install.
- Selectable tweeter level in two steps.
- Sold as single units.
|Description / type||16,5 cm / 6,5″ single stereo coaxial speaker|
|Impedance||2 x 4 ohm dual voice coil|
|Sensitivity||91 dB (1W/1m)|
|Frequency range||50 – 18 000 Hz|
|Recommended amplifier||20-120 Watt|
|Tweeter||2 x 20 mm / 0,8″ silk dome tweeter|
|Woofer size||16,5 cm (6,5″)|
|Outer dimensions||210 mm / 8,3″|
|Cutout dimensions||192 mm / 7,56″|
|Mounting depth||82 mm / 3,23″|
|Baffle thickness||10-33 mm|
|Off-axis angle||+- 45 degrees in distributed audio systems|
|Finish / colour||White|
|Weight||1,9 kg / 4,2 lbs|
