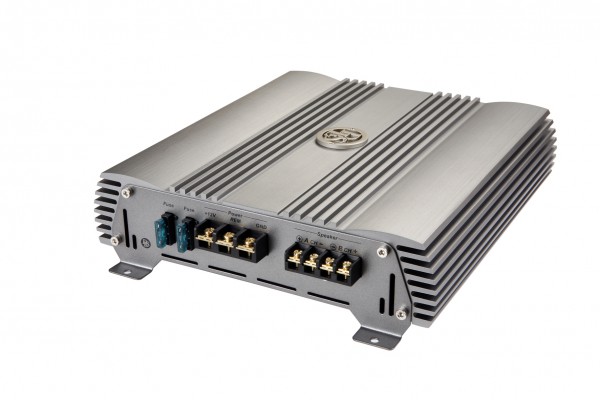

CA 23 is a powerful amplifier with a power output of 2 x 135 Watts.
With a mono bridge-connection, it puts out all of 400 Watts, ideal for subwoofer use.
- Built-in low pass filter for subwoofers, variable between 50 and 500 Hz.
- High pass / subsonic filter 15 – 150 Hz
- Bass boost control from 25 Hz – 80 Hz, 0-18 dB.
- Built-in protection circuits shut down the amplifier in the event of overloads.
- High level input with automatic start.
- RMS output power @ 13,8 V, 20Hz – 20 kHz
| Number of channels | 2 |
| Amplifier class | AB |
| Mono bridge mode 4 ohm | 400 W RMS |
| Output power in 2 ohm | 2 x 200 W RMS |
| Output power in 4 ohm | 2 x 135 W RMS |
| Damping factor | >100 |
| S/N ratio, A-weighted | >100 dB |
| Frequency range | 10 Hz – 35 kHz |
| Input sensitivity | 0,25 – 5 V |
| Input impedance | > 10 kohm |
| Input impedance, high level | 100 ohm |
| High pass filter | 15 – 150 Hz |
| Low pass filter | 50 – 500 Hz |
| Grand bass filter | 25 – 80 Hz, 0-18 dB |
| Low level output | Yes |
| High level input with auto start | Yes |
| Power consumption (idle) | 0,7 A |
| Power consumption (max) | 60 A |
| Rec. power cable | Minimum 5AWG / 16 mm2 |
| Dimension (W x D x H) | 250 x 295 x 67 mm / 9,84 x 11,6 x 2,63″ |
| Fuses | 2 x 30 A |
| Weight | 3,6 kg ( 7,9 lb) |
