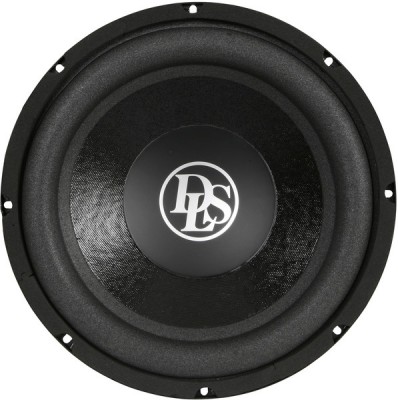

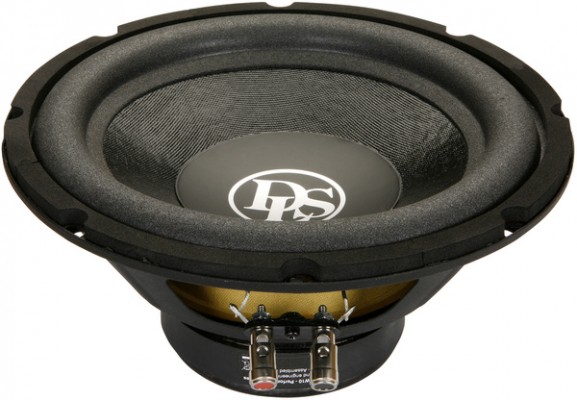

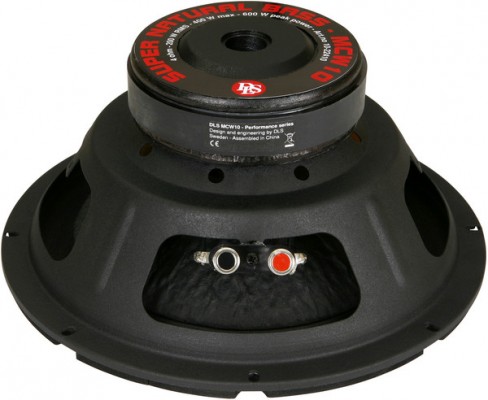

Performance MCW10 – 10 inch subwoofer

RRP $199

« Back to Products

Performance series MCW10 is a 10 inch subwoofer. It is an upgraded version of the previous KW10.

Basket in frosted black colour with push terminals.
With parameters that makes them work fine in both sealed and vented boxes.

The bass drivers has a cone of strong pressed paper and a powerful magnet system creates a good bass control.

 Specifications
Outer diameter of woofer 255 mm (10″)
Mounting depth 115 mm (4,52″)
Mounting hole 230 mm (9,05″)
X-max +- 9 mm (0,35″)
Frequency range 25 Hz – 1 kHz
Impedance 4 ohm
Sensitivity 86,7 dB
Power handling capacity 200 W
Max power handling capacity 400 W
Peak power 600 W
T/S parameters
single V/C
Fs 40,4  Hz   Re 2,9  Ohm   Qms 5,08
Vas 21,4  liter   Vas 0,76  Cuft   Qes 0,48
Qts 0,44   Sd 300  cm²   BL 12,90
Woofer size 10″ (25 cm)
Magnet size 120 mm (4,72″)
EAN Bar code 7331644823308
Weight 2,8 kg (6,17 lb)
