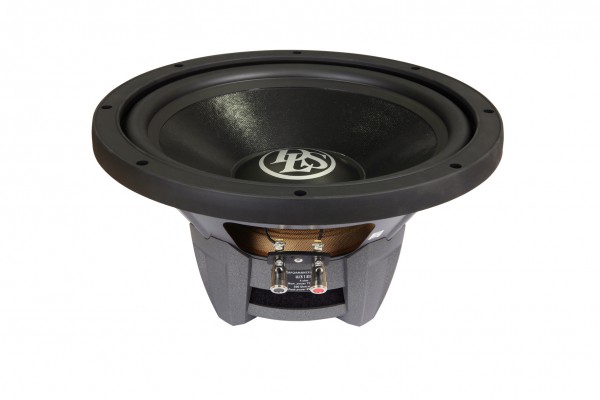

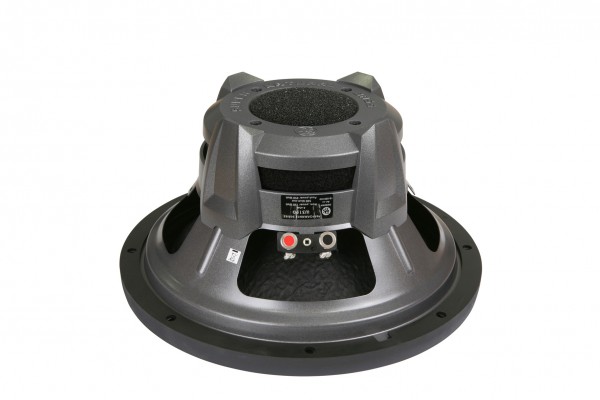

Performance W312D – 12 inch subwoofer

RRP $479

« Back to Products

W312D is the replacement for our popular W312B but in a more exclusive design.

DLS Performance W Series Woofers

The DLS W312D Performance W series subwoofer is rated at 450W Max, and 150W RMS, giving you the needed bass to bring out the best in your listening experience. If you are ready to rock your music without having to make the car shake and rattle, this woofer will offer quick, responsive, tight bass that will make you wonder how you ever did without true bass in your car.

Some people just want quality bass, that won’t blow their ear drums or wake up the neighbors. However often times you will find that low-bass producing subwoofers lack in sound quality make them almost not even worth the effort. This is not the case with the DLS Performance W series subwoofers. The Performance W series woofers are available in 10″ and 12″ sizes with a Single 4 ohm voice coil. The woofers range from 120 watts RMS to 150 watts RMS depending on the size of the woofer. These woofer will sound great in a ported enclosure, giving you that little extra bass with the quality and precision you would come to expect from DLS drivers. The woofers are equipped with a non-pressed paper carbon fiber reinforced woofer cone and rubber surround for increase rigidity, performance, and sound quality. The W series woofers from DLS are the perfect solution for sufficient bass with extreme quality and precision.

  • Cone of non pressed paper reinforced with carbon fibres.
  • Steel basket.
  • Make your installation complete with the RG 12 grille (not included)
Woofer size 12″ (30 cm)
Impedance 4 ohm
Power handling capacity 150 W RMS
Max power handling capacity 300 W
Peak power 450 W
Frequency range 20 – 2000 Hz
Sensitivity 91 dB (1W/1m)
Magnet size 156 mm (6,14″), 50 oz
Outer diameter of woofer 315 mm (12,4″)
Mounting depth 148 mm ( 5,83″)
Mounting hole 282 mm (11,1″)
X-max +- 5 mm (0,2″)
Weight 4,7 kg / 10,36 lb
T/S parameters
single V/C
Fs 30  Hz   Re 3,3  Ohm   Qms 3,26
Vas 115  liter   Vas 4,06  Cuft   Qes 0,36
Qts 0,34   Sd 452,3  cm²   BL 12,22
