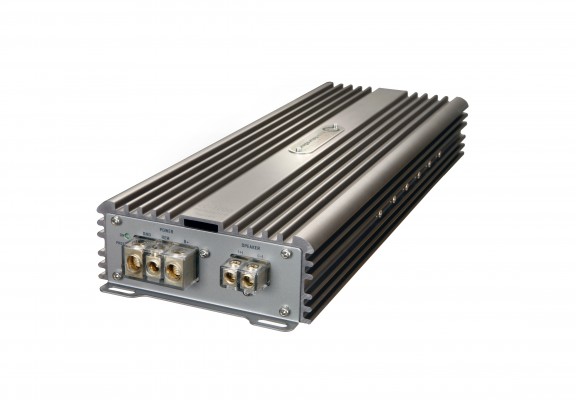

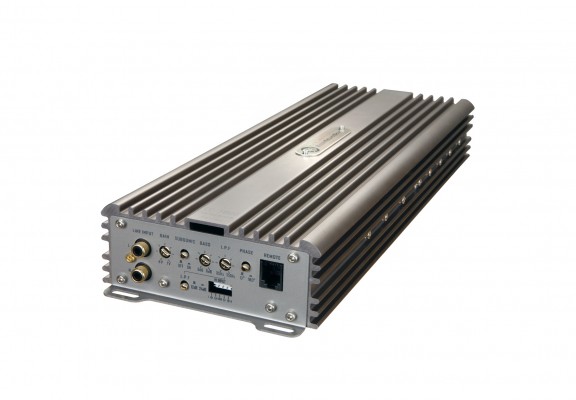

Reference CC-1000 – 1000 Watt mono amplifier

RRP $1299

 Specifications
Number of channels 1
Amplifier class D
Output power in 1 ohm 1000 W RMS
Output power in 2 ohm 700 W RMS
Output power in 4 ohm 440 W RMS
Damping factor > 154
S/N ratio, A-weighted > 92 dB
Frequency range 10 Hz – 500 Hz
Low level output No
Input sensitivity 1 – 4 V
Input impedance 22 kohm
Input impedance, high level 45 ohm
High pass filter Subsonic 30 Hz, ON/OFF
Low pass filter 35 – 250 Hz, 12 or 24 dB slope
Grand bass filter Bass boost 0- +6dB variable
Phase control for subwoofers 0 or 180 degrees switch
High level input with auto start Yes
Remote phase shift control No
Power consumption (idle) 0,6 A

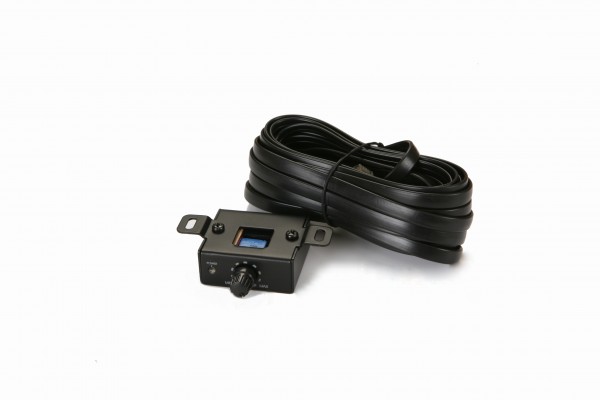

Remote bass level control Yes
Power consumption (max) 102 A
Integrated fan No
Rec. power cable 2AWG / 33 mm2
Fuses Use external fuse 100 A
Dimension (W x D x H) 129 x 368 x 55 mm / 5,07 x 14,48 x 2,16″
Weight 2,9 kg / 6,4 lb
EAN Bar code 7331644329305
