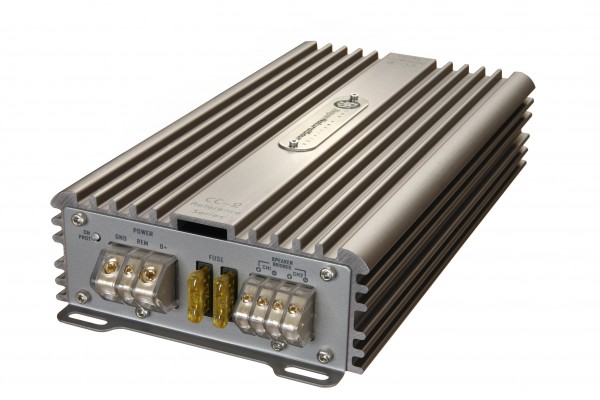

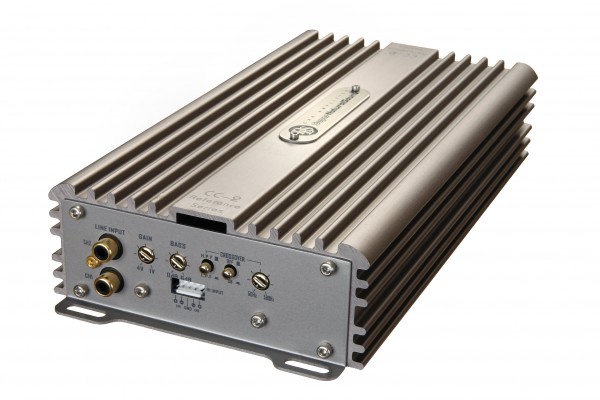

CC-2 is a small and powerful amplifier with a RMS power output of 2 x 170 Watts. In 4 ohm mono bridge-connection, it puts out all of 340 Watts.
– Built-in low-pass filter for subwoofers, variable between 50 and 500 Hz.
– The high-pass filter is also variable between 50 and 500 Hz.
– Built-in protection circuits shut down the amplifier in the event of overloads.
– High level input with AUTO-start function makes it easier to connect to factory installed head units.
– Bass EQ variabel fron 0 till +6dB.
– THD at 5W, 1 kHz: <0,02%
– Damping factor: >150
– Signal to noise ratio, A-weighted: 110 dB
SQ tuned in England!
| Specifications |
| Number of channels | 2 |
| Amplifier class | AB |
| Mono bridge mode 4 ohm | 340 Watt |
| Output power in 2 ohm | 2 x 170 Watt |
| Output power in 4 ohm | 2 x 110 Watt |
| Damping factor | > 150 |
| S/N ratio, A-weighted | > 110 dB |
| Frequency range | 10 Hz – 50 kHz |
| Input sensitivity | 1 – 4 Volt |
| Input impedance | 6 kohm |
| Input impedance, high level | 45 ohm |
| High pass filter | 50 – 500 Hz |
| Low pass filter | 50 – 500 Hz |
| Grand bass filter | Bass EQ +6dB @ 60 Hz |
| Low level output | No |
| High level input with auto start | Yes |
| Power consumption (idle) | 0,5 A |
| Power consumption (max) | 43 A |
| Rec. power cable | 16 sq mm ( 5 AWG) |
| Fuses | 2 x 20 A |
| Dimension (W x D x H) | 129 x 260 x 51 mm ( 5,07″ x 10,2″ x 2″) |
| Weight | 1,87 kg |
| EAN Bar code | 7331644329206 |
