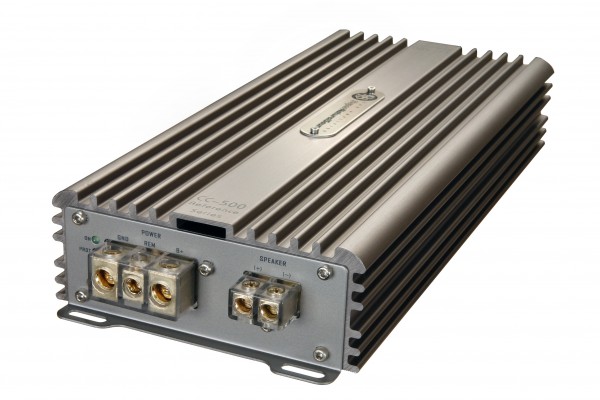

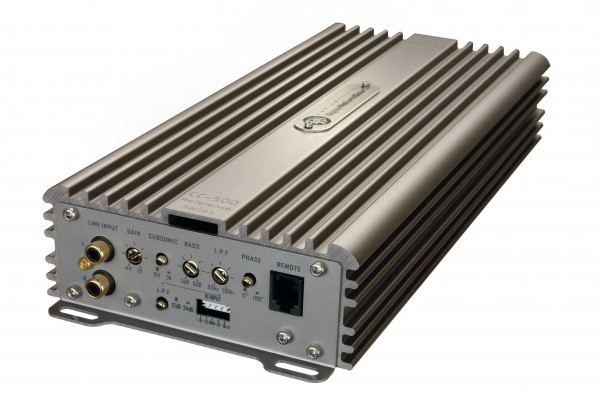

CC-500 is a compact and powerful mono amplifier with a power of 500 Watts RMS @ 1 ohm load.
A popular and good power amplifier with high reliability.
An amplifier for both amateurs and professionals.
– Built-in low-pass filter for subwoofers, variable between 35 and 250 Hz. Selectable 12 / 24 dB slope.
– Built-in protection circuits shut down the amplifier in the event of overloads
– BASS BOOST adjustable 0 – +6 dB.
– Damping factor >140
– S/N ratio, A weighted: 97 dB
– Remote bass level control is included
– High level input with automatic start.
-RMS output power @ 14,4 V
Received the award as “KLANGTIPP” in Spitzenklasse in german magazine CAR & HIFI in january 2015.
We have revised down values of the output power for the CC 500. We had previously indicated too high figures due to inaccurate measurement tasks.
| Specifications |
| Number of channels | 1 |
| Amplifier class | D |
| Output power in 1 ohm | 500 W RMS |
| Output power in 2 ohm | 400 W RMS |
| Output power in 4 ohm | 250 W RMS |
| Damping factor | > 140 |
| S/N ratio, A-weighted | > 97 dB |
| Frequency range | 10 Hz – 500 Hz |
| Low level output | No |
| Input sensitivity | 1 – 4 V |
| Input impedance | 22 kohm |
| Input impedance, high level | 45 ohm |
| High pass filter | Subsonic 30 Hz, ON/OFF |
| Low pass filter | 35 – 250 Hz, 12 or 24 dB slope |
| Grand bass filter | Bass boost 0- +6dB variable |
| Phase control for subwoofers | 0 or 180 degrees switch |
| High level input with auto start | Yes |
| Remote phase shift control | No |
| Power consumption (idle) | 0,6 A |
| Remote bass level control | Yes |
| Power consumption (max) | 80 A |
| Integrated fan | No |
| Rec. power cable | 2AWG / 33 mm2 |
| Fuses | Use external fuse 60 A |
| Dimension (W x D x H) | 129 x 304 x 51 mm / 5,07 x 11,96 x 2″ |
| Weight | 2,4 kg / 5,3 lb |
| EAN Bar code | 7331644329107 |
