| Number of channels | 5 |
| Amplifier class | AB |
| Mono bridge mode 4 ohm | 2 x 220 W RMS |
| Output power in 2 ohm | 4 x 110 W RMS |
| Output power in 4 ohm | 4 x 70 W RMS |
| Mono sub channel 2 ohm | 365 W RMS |
| Mono sub channel 4 ohm | 265 W RMS |
| Damping factor | >200 |
| S/N ratio, A-weighted | >100 dB |
| Frequency range | 10 Hz – 50 kHz |
| Input sensitivity | 0, 5 – 8 V |
| Input impedance | > 10 kohm |
| Input impedance, high level | 330 ohm |
| Filters channel A & B | HP: 50-140 Hz, LP: 250/2,5 kHz – 700/7 kHz (x1, x10 switch) |
| Phase control for subwoofers | 0-180 degrees variable |
| Filters channel C & D | HP: 50/250/2,5 kHz – 140/700/7 kHz (x1, x5, x50 switch |
| Filters channel E | LP 40 – 125 Hz, Subsonic 25 Hz |
| Grand bass filter | 0 – +18 dB @40 Hz |
| Low level output | No |

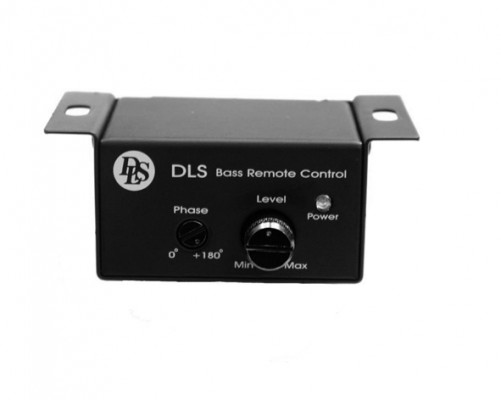

| Remote bass level control | Yes |
| Remote phase shift control | Yes |
| High level input with auto start | Yes |
| Power consumption (idle) | 1,2 A |
| Power consumption (max) | 90 A |
| Rec. power cable | Minimum 4AWG / 21 mm2 |
| Dimension (W x D x H) | 479 x 245 x 59 mm (18,85 x 9,65 x 2,33 inch) |
| Weight | 5,5 kg ( 12,1 lb) |
