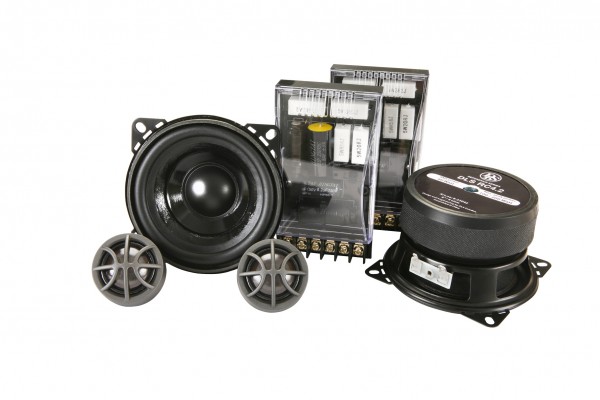

Reference series RC4.2 is a 10 cm (4”) 2-way component kit with a separate 25 mm tweeter with copper rings for improved treble sound.

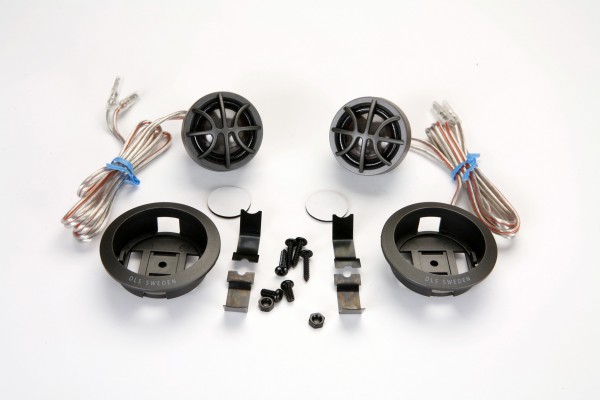

Install the tweeter on the dashboard or recessed in the door, all mounting parts are included.
The bass driver has a coated paper cone with rubber edge and a 80 mm powerful magnet that guarantees a good bass control and a fantastic sound. Grilles are included.
Filter boxes with only the best components!
| Woofer size | 10 cm (4″) |
| Tweeter | RC25, 25 mm (1,25″) silk dome tweeter with copper rings |
| Power handling capacity | 60 W RMS / 100 W max / 200 W peak power |
| Impedance | 4 ohm |
| Frequency range | 65 – 22 000 Hz |
| Sensitivity | 86 dB (1W/1m) |
| Crossover | Filter box with 12 dB slope (HP & LP) |
| Crossover point (Hz) | 4500 Hz |
| Size of filter box | 120 x 66 x 33 mm ( 4,72 x 2,6 x 1,3″) |
| Outer diameter of woofer | 102 mm (4″) |
| Magnet size | 80 mm (3,15″) |
| Mounting depth | 57 mm ( 2″) |
| Mounting hole | 97 mm (3,82″) |
