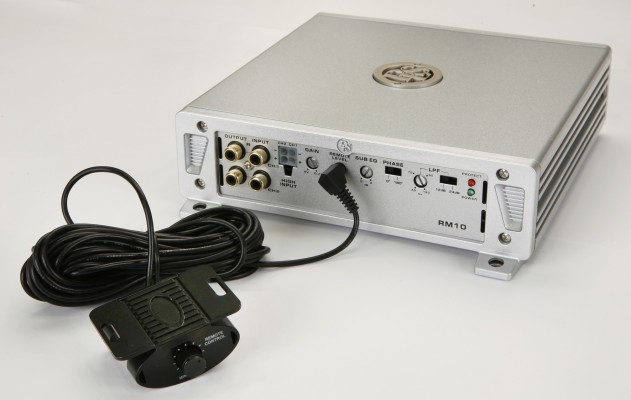

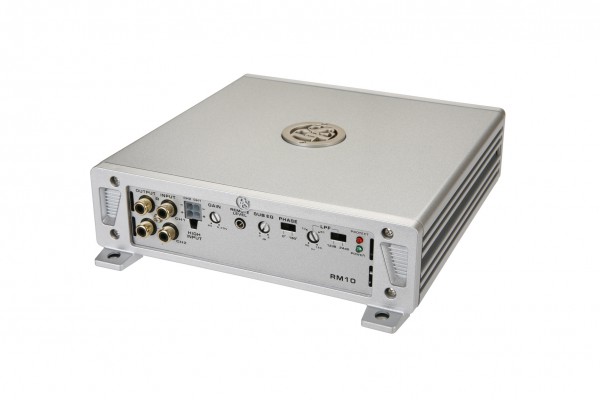

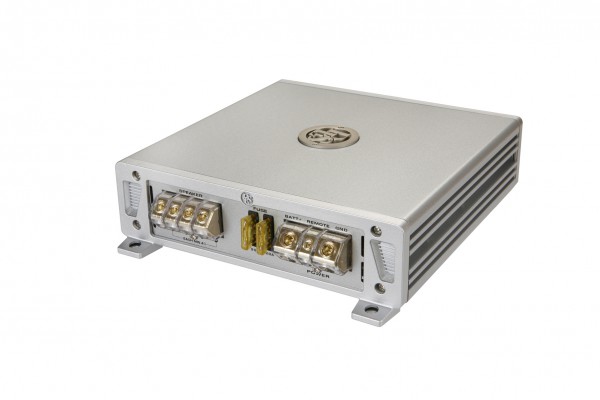

Reference RM10 – 285 Watt mini mono amplifier

RRP

Number of channels 1
Amplifier class D
Mono bridge mode 4 ohm N/A
Output power in 2 ohm 285 W @14,4V, 1%THD
Output power in 4 ohm 175 [email protected],4V, 1% THD
Damping factor > 100
S/N ratio, A-weighted > 100 dB
Frequency range 15 Hz – 200 Hz
Input sensitivity 0,25 – 8 V
Low level output Yes
Input impedance > 47 kohm
Input impedance, high level 220 ohm
Phase control for subwoofers 0-180 degrees variable
High pass filter Subsonic 25 Hz fixed
Low pass filter 50-150 Hz / 12 db slope
Grand bass filter SUB EQ 0-6 dB @ 40 Hz
High level input with auto start Yes
Remote phase shift control No
Remote bass level control Yes
Integrated fan No
Power consumption (idle) 0,5A
Power consumption (max) 40 A
Rec. power cable Minimum 4AWG / 21 mm2
Fuses 2 x 20 A
Dimension (W x D x H) 189 x 212 x 55 mm (7,44 x 8,35 x 2,16 inch)
Weight 2 kg ( 4,4 lb)
