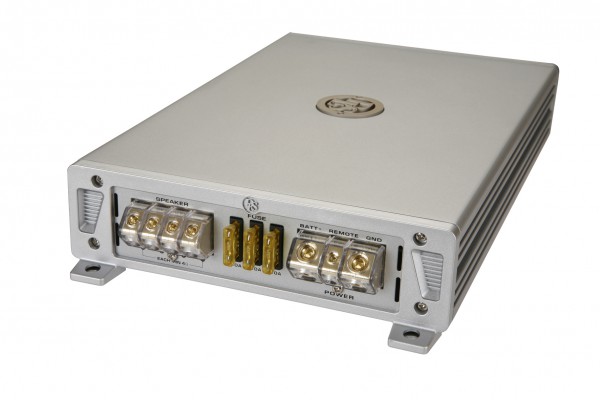

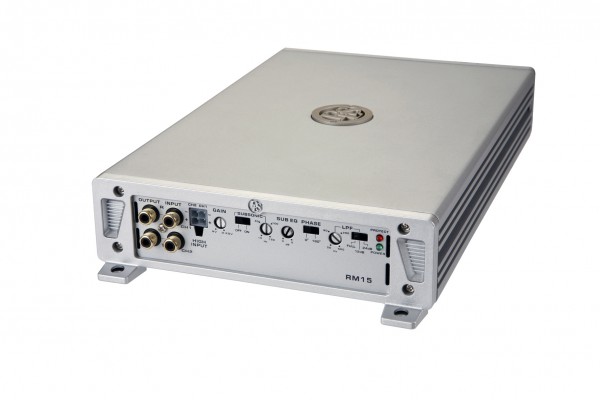

Reference RM15 – 450 Watt mono amplifier

RRP

Number of channels 1
Amplifier class AB
Mono bridge mode 4 ohm N/A
Output power in 2 ohm 450 W RMS @14,4V, 1%THD
Output power in 4 ohm 290 [email protected],4V, 1% THD
Damping factor > 100
S/N ratio, A-weighted > 100 dB
Frequency range 10 Hz – 35 kHz
Input sensitivity 0,25 – 8 V
Low level output Yes
Input impedance > 47 kohm
Input impedance, high level 220 ohm
Phase control for subwoofers 0-180 degrees variable
High pass filter 15 – 150 Hz variable
Low pass filter 50-500 Hz / 12 db slope
Grand bass filter SUB EQ 0-6 dB @ 40 Hz
High level input with auto start Yes
Remote phase shift control No
Remote bass level control No

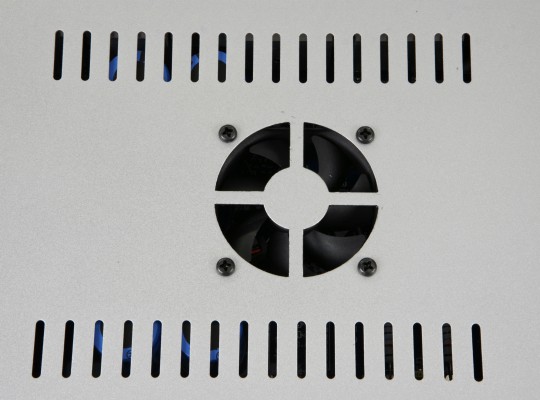

Integrated fan Yes
Power consumption (idle) 0,7A
Power consumption (max) 60 A
Rec. power cable Minimum 4AWG / 21 mm2
Fuses 3 x 20 A
Dimension (W x D x H) 189 x 312 x 55 mm (7,44 x 12,3 x 2,16 inch)
Weight 2,9 kg ( 6,4 lb)
