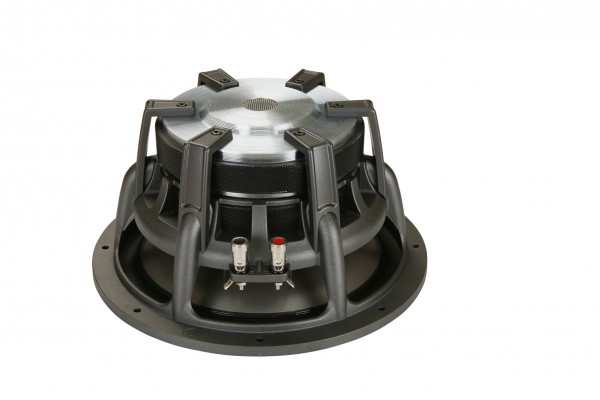

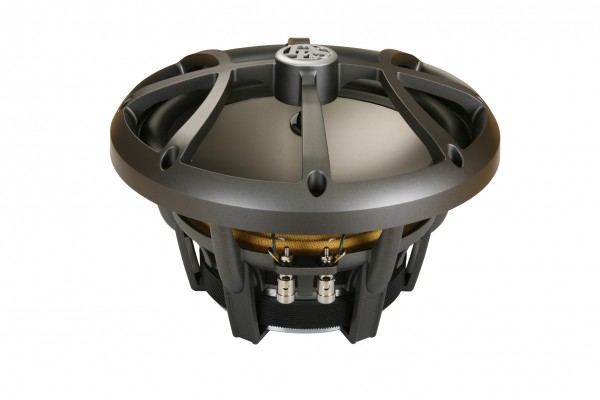

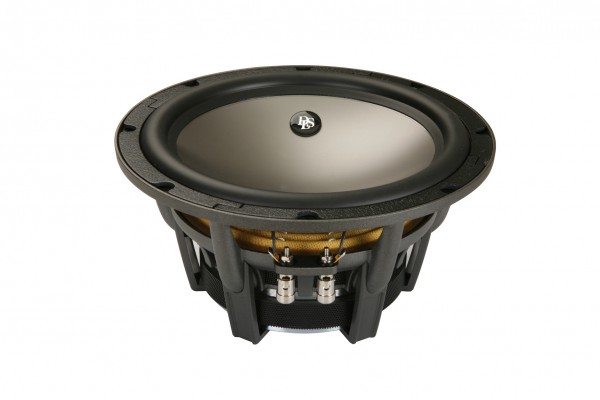

Reference RMW10 – 10 inch sub with port included

RRP $699

« Back to Products

RMW10 is a best selling subwoofer with a sturdy construction and heavy magnet structure. Nice design details gives the subwoofer an exclusive look.

DLS Reference MW Series Subwoofers Are Made for Bass

Some woofers are strictly made for bass output. This DLS MW10D Reference series subwoofer was design to provide excellent booming bass. The woofer is rated at 400W RMS which will give you more than enough bass to really upgrade your car audio system. The woofer is specifically design to be used in a ported enclosure and even comes with its own port to bring out the best possible bass reproduction from this subwoofer. The woofer features a magnesium woofer cone, rubber surround and study die-cast basket for improved, stability, linear movement, rigidity, excursion, and all around sound performance. Much research and development has gone into making the MW10D the perfect woofer to use when wanting deep, rich, precise and constant bass.

  • Cone of aluminium with superb sound qualities.
  • Dual magnet system.
  • Optimized for vented enclosures.
  • 4 ohm voice coil.
  • Open design for maximum voice coil cooling.
  • Includes Aero Port & Grill.
Woofer size 10″ (25 cm)
Impedance 4 ohm
Power handling capacity 400 W RMS
Max power handling capacity 600 W
Peak power 800 W
Frequency range 25 – 2000 Hz
Sensitivity 87,2 dB (1W/1m)
Magnet size 156 mm (6,14″) 50 oz
Outer diameter of woofer 266 mm (10,47″)
Mounting depth 125 mm (4,92″)
Mounting hole 236 mm ( 9,29″)
Weight 5,3 kg (11,68 lbs)
X-max +- 9 mm (0,35″)
T/S parameters
single V/C
Fs 35,8  Hz   Re 3,3  Ohm   Qms 3,07
Vas 38,5  liter   Vas 1,36  Cuft   Qes 0,36
Qts 0,45   Sd 366  cm²   BL 11,5
