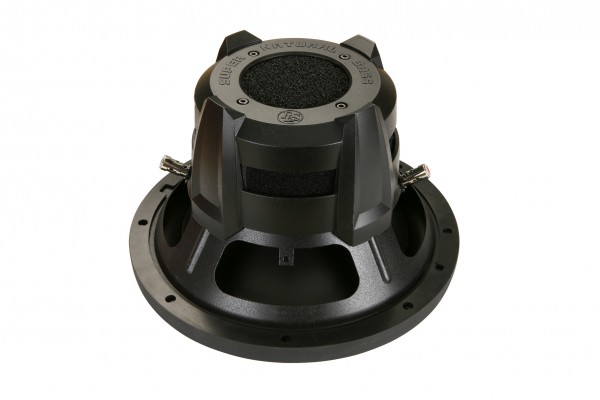

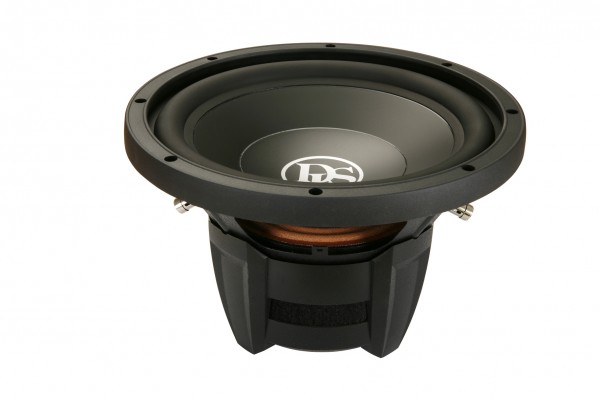

Reference RW10i – 10 inch subwoofer

RRP $529

 Specifications
Woofer size 10″ (25 cm)
Impedance 2 ohm
Power handling capacity 250 W RMS
Max power handling capacity 500 W
Peak power 750 W
Frequency range 25 Hz – 2 kHz
Sensitivity 86,5 dB
Magnet size 150 mm (5,9″) 47 oz
Outer diameter of woofer 275 mm (10,82″)
Mounting depth 150 mm (5,9″)
Mounting hole 240 mm (9,45″)
X-max +- 9 mm (0,35″)
Weight 4,5 kg (9,9 lb
T/S parameters
single V/C
Fs 28,8  Hz   Re 1,8  Ohm   Qms 3,95
Vas 63,3  liter   Vas 2,23  Cuft   Qes 0,46
Qts 0,42   Sd 346  cm²   BL 7,8
