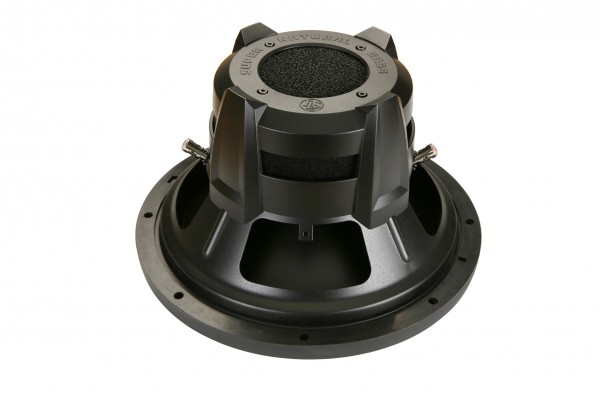

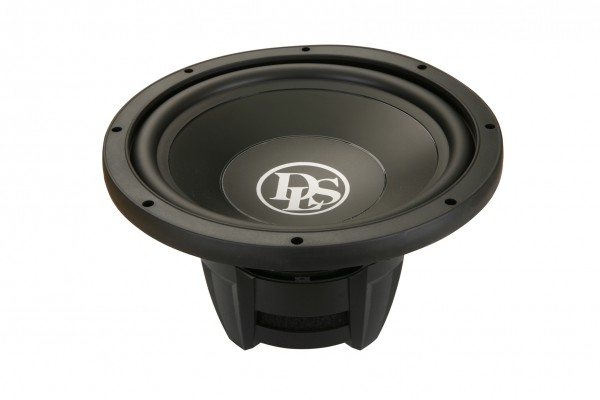

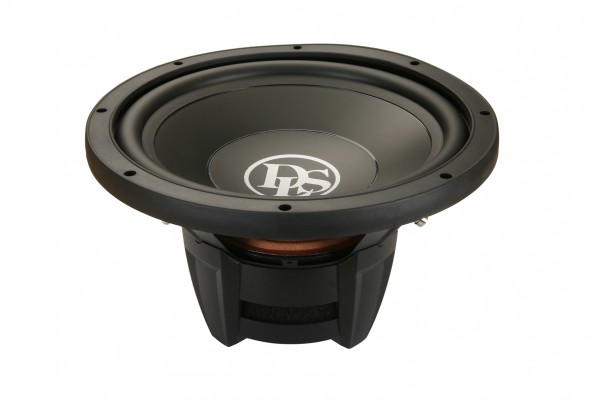

Reference RW12i – 12 inch subwoofer

RRP $699

Specifications

Woofer size

12″ (30 cm)

Impedance

2 ohm

Power handling capacity

250 W RMS

Max power handling capacity

500 W

Peak power

750 W

Frequency range

20 Hz – 2 kHz

Sensitivity

87,6 dB

Magnet size

150 mm (5,9″), 55 oz

Outer diameter of woofer

320 mm (12,6″)

Mounting depth

165 mm (6,5″)

Mounting hole

280 mm (11″)

Weight

5,5 kg ( 12,1 lb)

X-max

+- 9 mm (0,35″)

T/S parameters
single V/C

Fs	26,1	Hz	Re	1,8	Ohm	Qms	4,4
Vas	99,6	liter	Vas	3,52	Cuft	Qes	0,48
Qts	0,44		Sd	511	cm²	BL	9,1

Bridge mode connections and more Owners manual RW10i & RW12i
