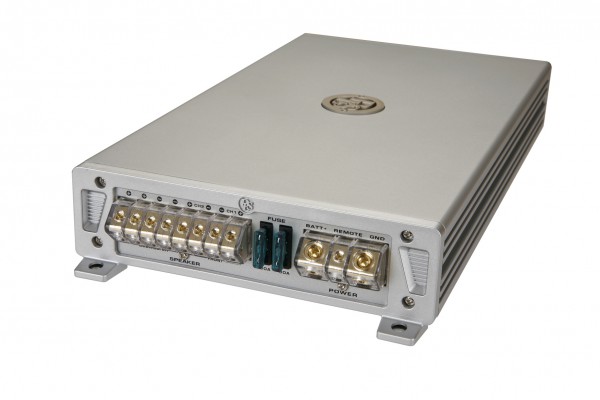

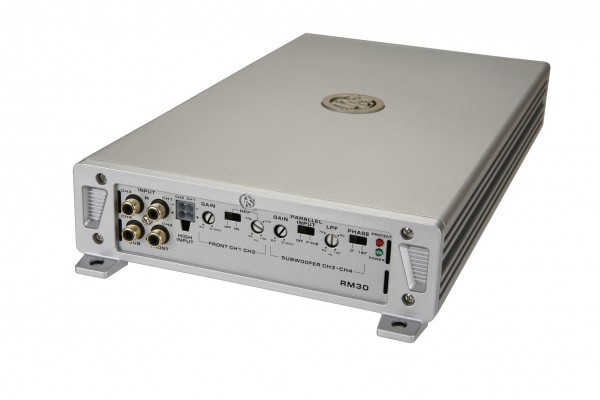

Reference RM30 – 410 Watts, 3-ch amplifier

RRP $499

« Back to Products

REFERENCE series RM30 is a 3-channel amplifier rated at 2 x 75 + 1 x 260 Watts in 2 ohm load.

  • Built-in variable 50-120 Hz low pass filter for subwoofers.
  • Built-in/switchable variable 50-150 Hz high pass filter that can be used as a subsonic filter or high-pass filter for front systems.
  • Phase shift switch 0-180 degrees.
  • High level input with automatic start.
  • RMS output per channel at 13,6 volts, 20 Hz – 20 kHz , < 0,1% distortion.
Number of channels 3
Amplifier class AB
Output power in 2 ohm 2 x 100 W RMS
Output power in 4 ohm 2 x 75 W RMS
Mono sub channel 2 ohm 260 W RMS
Mono sub channel 4 ohm 170 W RMS
Mono bridge mode 4 ohm 1 x 310 W RMS
Damping factor > 100
S/N ratio, A-weighted > 100 dB
Frequency range 10 Hz – 35 kHz
Input sensitivity 0,25 – 8 V
Input impedance 47 kohm
Input impedance, high level 220 ohm
High level input with auto start Yes
Remote bass level control No
Low level output No
Remote phase shift control No
Filters channel A & B HP: 50 – 150 Hz
Phase control for subwoofers 0-180 degrees variable
Filter sub channel LP: 50 – 120 Hz
Power consumption (idle) 0,85 A
Power consumption (max) 60 A
Rec. power cable Minimum 4AWG / 21 mm2
Fuses 2 x 30 A
Dimension (W x D x H) 189 x 352 x 55 mm (7,44 x 13,85 x 2,16 inch)
Weight 3,3 kg ( 7,3 lb)
