Flatsub – “all in one”

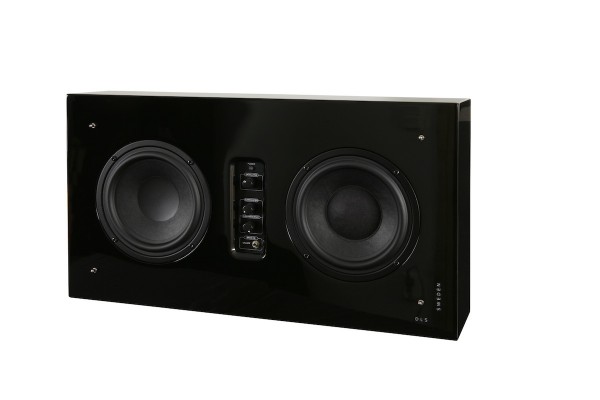

DLS Flatsub Stereo-One is an active subwoofer with a built-in class D power amplifier for the subwoofer together with a stereo amplifier for a pair of Flatbox stereo speakers. The Flatsub Stereo-One with a specially developed, 7”, long-stroke woofer and a powerful magnetic system combined, and a passive radiator for improved bass sound.

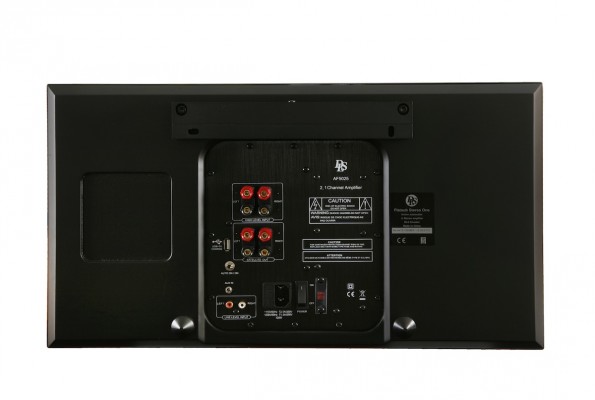

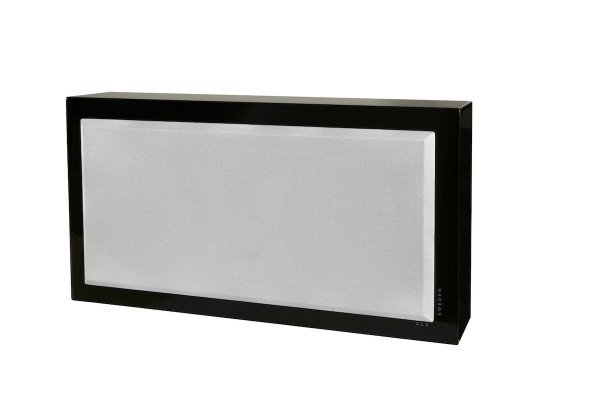

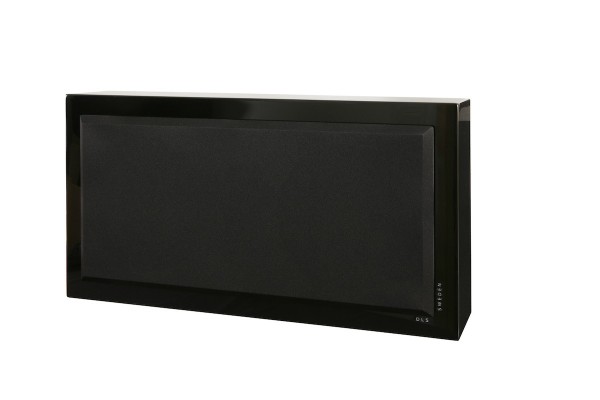

The subwoofer allows great freedom in placement. With the controls you can adjust level for front system, level for subwoofer, crossover frequency and Bass EQ which makes it easy to adjust for the acoustics in your listening room. Both a black and white front grille is included. Available also in white silk finish.

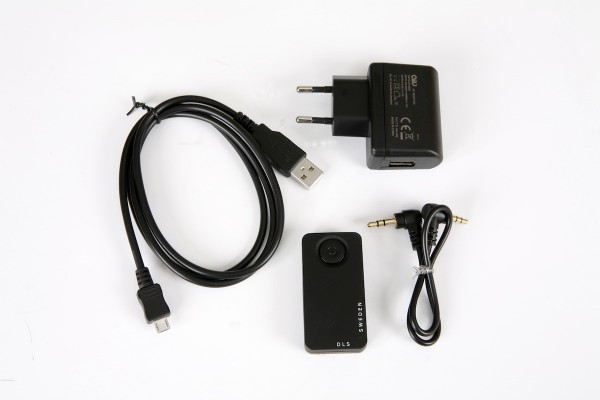

Bluetooth receiver BTR1.0 included.
Flatsub Stereo-One has a separate bluetooth Apt-X receiver. Connect the Bluetooth receiver, that is included, to the USB power adaptor and the signal line input.
Then go to the Bluetooth manager of your Smartphone, tablet or computer to connect with the Flatsub Stereo-One and play your favourite music using wireless streaming.
|Description / type||Active subwoofer with 2.1 amplifier system|
|Amplifier||Digital 80 W for sub. + 2×35 W satellite amplifier|
|Woofer size||7″ / 17,5 cm + passive radiator 7″|
|Frequency range||Sub: 32 Hz @-6dB|
|Finish / colour||Black piano finish|
|Low pass filter||50 – 250 Hz for subwoofer amp.|
|High pass filter||12 dB 80 Hz for satellite amp.|
|Grand bass filter||BASS EQ + 5dB @ 35 Hz|
|Low level input||Yes|
|High level input with auto start||Yes|
|Dimension (W x D x H)||550 x 165 x 300 mm / 21,65 x 6,5 x 11,8″|
|Weight||8,5 kg / 18,7 lbs|
