Ultimate series Gothia 6.3 is a new16,5 cm (6,5″) 3-way component.
- The 6,5″ driver uses a cone of carbon fibre mounted in a cast basket.

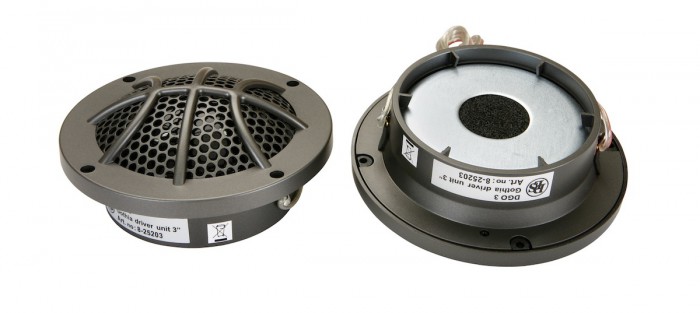

- The midrange is Gothia 3 (3″, 75 mm) mid dome speaker. – Ferrite magnet system on bass and mid while the tweeter has a neodymium magnet system.
- Filter boxes with selectable tweeter level in three steps.

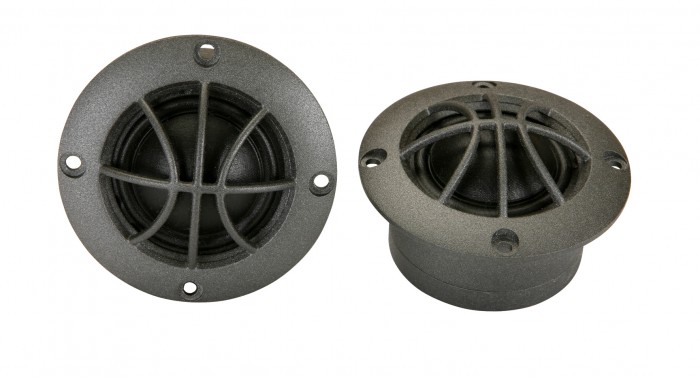

- 28 mm silk dome tweeter Gothia 1.
- Grilles are included.
In the magnet system we use a new T-type T-yoke with integrated copper rings for improved cone control and lower distortion. This Gothia system gives you a high resolution sound full with details.
| Specifications |
| Woofer size | 16,5 cm (6,5″) |
| Tweeter | Gothia 1, 28 mm (1,1″) tweeter in metal housing |
| Power handling capacity | 100 W RMS / 180 W max |
| Impedance | 4 ohm |
| Frequency range | 30 – 25.000 Hz |
| Sensitivity | 91 dB (1W/1m) |
| Crossover | Box filter LP12dB / HP 6, LP 6 dB / HP 12 dB |
| Crossover point (Hz) | 400 Hz / 5500 Hz |
| Size of filter box | 145 x 85 x 45 mm ( 5,71 x 3,35 x 1,77″) |
| Outer diameter of woofer | Woofer: 165 mm (6,5″) Mid: 120 mm (4,72″) |
| Mounting hole | Woofer: 140 mm (5,5″) Mid: 95 mm (3,74″) |
| Magnet size | 100 mm (3,35″) |
| Mounting depth | Woofer: 72 mm ( 2,83″) Mid: 35 mm (1,38″) |
