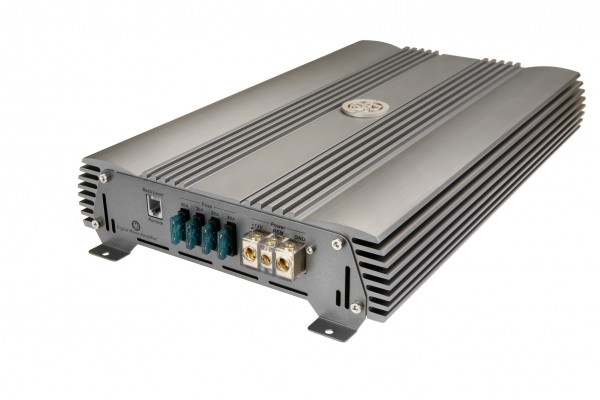

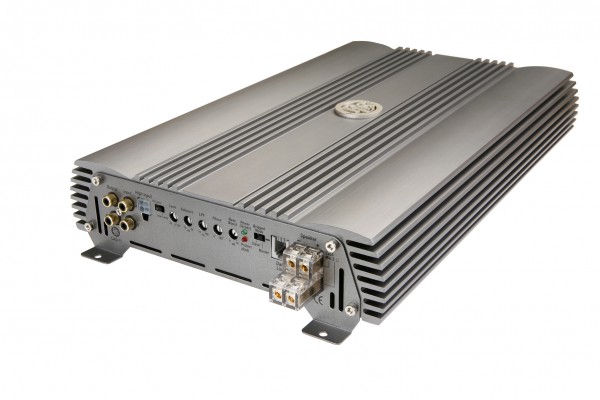

Performance CAD11 (2012) – 1 kilowatt mono amp

RRP $799

« Back to Products

CAD11 is a powerful mono amplifier with a nominal power of 1050 Watts in 1 ohm load. In 4 ohm load the output is 400 Watts, and in 2 ohms 750 Watts.

CAD11 is a digital class D amplifier.

  • Built-in variablelow pass filter 15 – 150 Hz.
  • Variable subsonic filter 15-50 Hz with 24 dB slope.
  • Adjustable bass boost 0- +18 dB.
  • Built-in phase control variable 0-180 degrees.
  • With the remote control you can adjust the level from your front seat.
  • High level input with auto start
  • Built-in protection circuits shut down the amplifier in the event of overloads.
  • Built-in fan to prevent from overheating. Can be connected in bridge mode together with a second CAD11.
  • RMS output per channel measured @ 13,8 volts.
  • Bridging two CAD11 together will give a power output of 1600 W
Number of channels 1
Amplifier class D
Output power in 1 ohm 1050 W (1% THD)
Output power in 2 ohm 750 W (0,7% THD)
Output power in 4 ohm 400 W (0,4% THD)
Mono bridge mode 4 ohm N/A
Damping factor >100
S/N ratio, A-weighted >100 dB
Input sensitivity 0,15 – 5 V
Input impedance >10 kohm
Input impedance, high level 100 ohm
High pass filter N/A
Low pass filter 15 – 150 Hz / 24 dB
Frequency range 15 Hz – 160 Hz
Grand bass filter 0 – +18 dB @45 Hz
Low level output No
Remote phase shift control No
Phase control for subwoofers 0-180 degrees cont. variable
Remote bass level control Yes
Integrated fan Yes
High level input with auto start Yes
Power consumption (idle) 1,5 A
Power consumption (max) 120 A
Rec. power cable Minimum 2AWG / 33 mm2
Fuses 4 x 30 A
Weight 6 kg / 13,8 lb
Dimension (W x D x H) 250 x 392 x 67 mm / 9,84 x 15,42 x 2,63
