Reference RC6.3 – 3-way component

RRP $799

« Back to Products

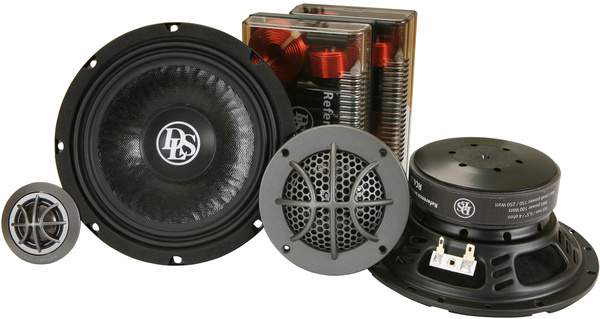

Reference series RC6.3 is a 16,5cm (6,5”) 3-way component kit with a separate 2,5” dome midrange and a 25 mm tweeter with copper rings for improved treble sound.
Install the midrange and tweeter on the dashboard or recessed in the door, all mounting parts are included.

The bass driver has a cone of pressed paper with dual rubber edge and a 100 mm powerful magnet that guarantees a good bass control. Grilles are included.

Filter boxes with only the best components!

Specifications
Impedance 4 ohm
Power handling capacity 100 W RMS / 150 W max
Woofer size 16,5 cm (6,5″)
Midrange size 63 mm (2,5″) UPi2,5
Tweeter RC25, 25 mm (1″) silk dome tweeter
Frequency range 40 – 22 000 Hz
Sensitivity 85 dB (1W/1m)
Crossover point (Hz) 550 Hz / 4000 Hz
Outer diameter of woofer Woofer: 165 mm (6,5″). Mid: 114 mm (4,49″)
Magnet size Woofer: 100 mm (4″). Mid: 60 mm (2,36″)
Mounting depth Woofer: 68 mm ( 2,3″). Mid: 14 mm (0,55″)
Mounting hole Woofer: 145 mm (5,7″). Mid: 80 mm (3,15″)
Size of filter box 145 x 95 x 45 mm ( 5,71 x 3,74 x 1,77″)
T/S parameters
single V/C
Fs 64,2  Hz   Re 3,4  Ohm   Qms 7,29
Vas 6,27  liter   Vas 0,22  Cuft   Qes 0,884
Qts 0,79   Sd  cm²   BL 6,59
Crossover Crossover boxes with 12/6/6 db slope
EAN Bar code 7331644821700
