Ultimate UP36i – 3-way, 6.5 inches component

RRP $999

« Back to Products

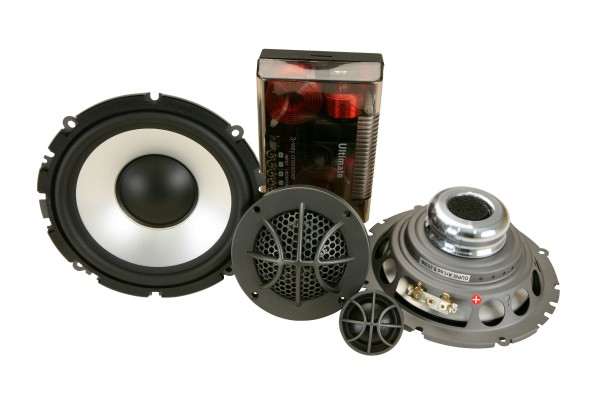

Ultimate series UP36i is a 16,5 cm (6,5″) 3-way component with very good sound.

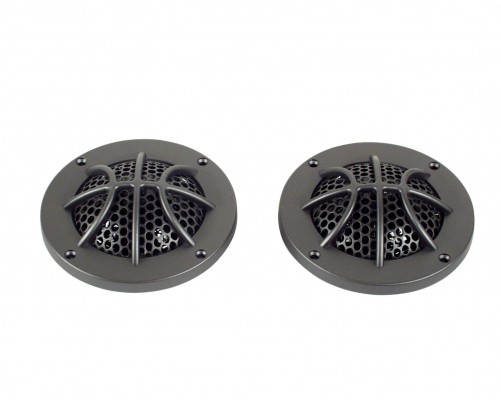

  • The midrange is our unique UP2,5i (2,5″, 63 mm) mid-dome.
  • Powerful neodymium magnet system.
  • Two inch voice coil.
  • Filterboxes with selectable tweeter level.

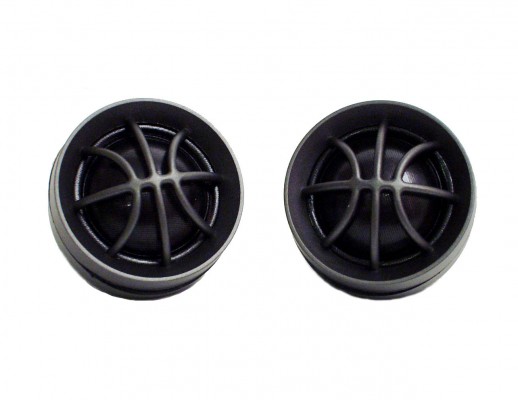

  • 28 mm silk dome tweeter UP1i.

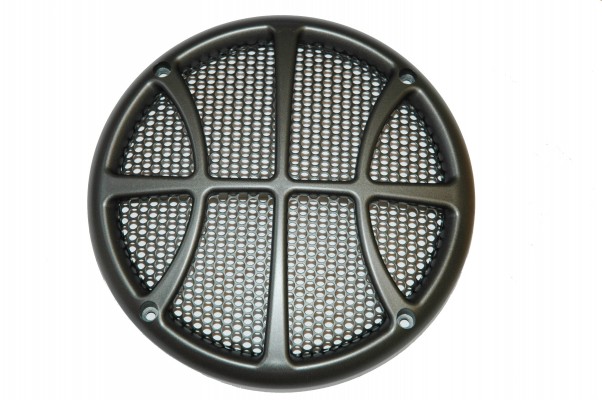

  • Grilles are included.
Specifications
Woofer size 16,5 cm (6,5″)
Midrange size 63 mm (2,5″)
Tweeter UP1i, 28 mm (1,1″) silk dome tweeter
Power handling capacity 150 W RMS / 180 W max
Impedance 4 ohm
Frequency range 50 – 20.000 Hz
Sensitivity 88 dB (1W/1m)
Crossover Filter box with 12/6/6 dB slope
Crossover point (Hz) 500 Hz / 5000 Hz
Size of filter box 145 x 95 x 45 mm ( 5,71 x 3,74 x 1,77″)
Outer diameter of woofer Woofer: 165 mm (6,5″) Mid: 100 mm (3,94″)
Magnet size 62 mm (2,44″) Hybrid ferrit/neodymium
Mounting depth Woofer: 63 mm ( 2,48″) Mid: 25 mm (1″)
Mounting hole Woofer: 140 mm (5,5″) Mid: 82 mm (3,23″)
