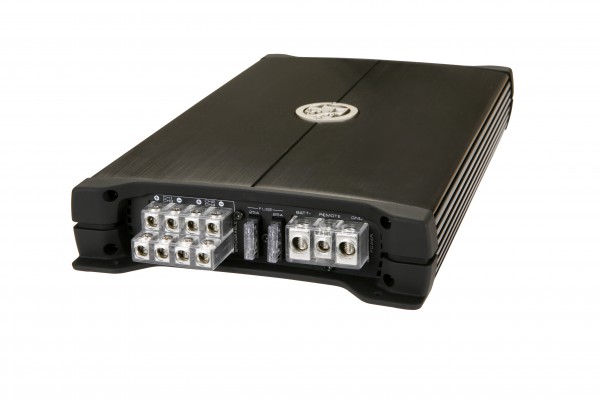

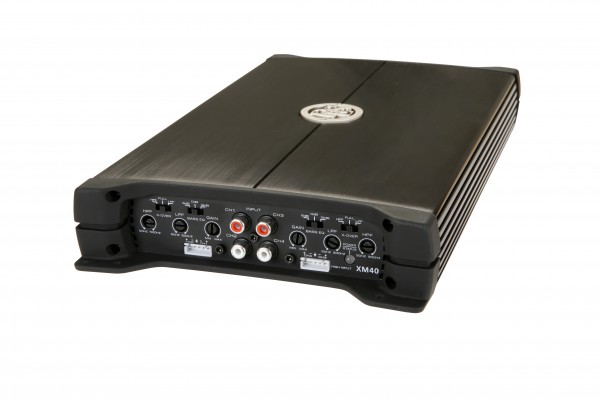

Performance XM40 – 4 x 100 Watt amplifier

RRP $279

« Back to Products

XM40 is a small and powerful amplifier with power output of 4 x 100 Watts peak power,  and in mono bridge-connection, it puts out all of 2 x 170 Watts.

  • Built-in/switchable low pass and high pass filters.
  • Bass EQ @ 50 Hz: + 6dB / + 12 dB.
  • Built-in protection circuits shut down the amplifier in the event of overloads.
  • Hi level input with Auto start
  • Use it for a front system and a subwoofer.

SQ tuned in England!

Number of channels 4
Amplifier class AB
Peak power 4 x 100 Watt
Output power in 2 ohm 4 x 80 Watt
Output power in 4 ohm 4 x 56 Watt @ 1% THD, 4 x 50 Watt @ 0,05% THD
Mono bridge mode 4 ohm 2 x 170 Watt
Damping factor >80
S/N ratio, A-weighted >90 dB
Frequency range 20 Hz – 30 kHz
Input sensitivity 0,25 – 5 Volt
Input impedance 22 kohm
Input impedance, high level 220 ohm
High level input with auto start Yes
Remote bass level control No
Low level output No
Remote phase shift control No
Low pass filter 50 – 500 Hz ( Ch 1,2,3,4)
High pass filter 50 – 500 Hz (Ch 1,2,3,4)
Grand bass filter Bass EQ @ 50 Hz: +6db / +12 dB
Power consumption (idle) 0,5 A
Power consumption (max) 50 A
Rec. power cable 16 sq mm ( 5 AWG)
Fuses 2 x 25 A
Dimension (W x D x H) 189 x 322 x 46 mm (7,44″ x 12,67″ x 1,81″)
Weight 3 kg
