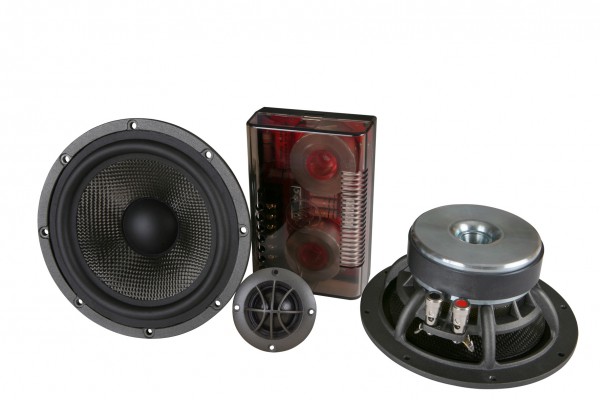

Gothia 6.2 is a new 16,5 cm (6,5″) 2-way component with a solid die-cast basket and a cone body of Carbon fibre.
- A powerful ferrite magnet system and 1,5″ voice coil.
- Filter boxes with selectable tweeter level in four steps and only high class components are used, like ribbon air coils.

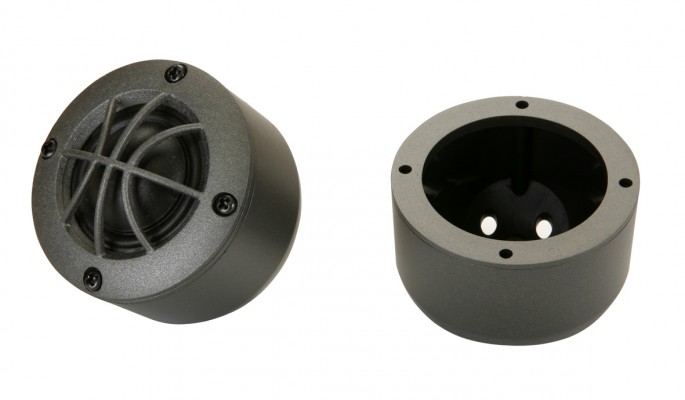

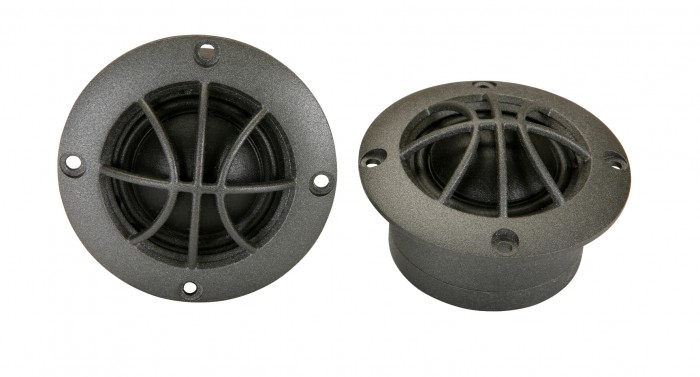

- 28 mm silk dome tweeter in metal housing with chamber.

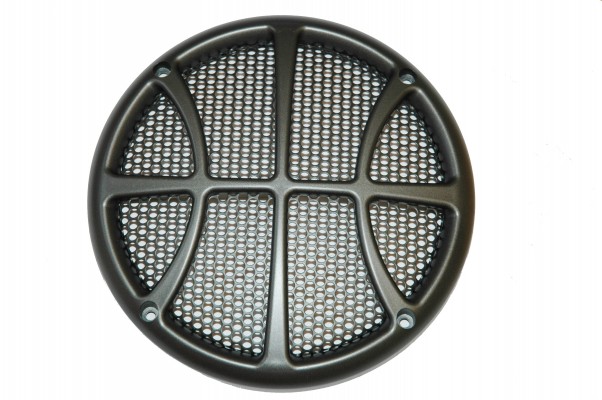

- Special designed grilles are included.
In the magnet system we use a new T-type T-yoke with integrated copper rings for improved cone control and lower distortion. This Gothia system gives you a high resolution sound full with details.
|Woofer size||16,5 cm (6,5″)|
|Tweeter||Gothia 1, 28 mm (1,1″) tweeter in metal housing|
|Power handling capacity||100 W RMS / 180 W max|
|Frequency range||30 – 25. 000 Hz|
|Sensitivity||91 dB (1W/1m)|
|Crossover||Filter box with 6/12 dB slope (LP/HP)|
|Crossover point (Hz)||4000 Hz|
|Size of filter box||145 x 95 x 45 mm ( 5,71 x 3,74 x 1,77″)|
|Outer diameter of woofer||165 mm (6,5″)|
|Magnet size||100 mm (4″)|
|Mounting depth||72 mm ( 2,83″)|
|Mounting hole||140 mm (5,51″)|
