Reference RA30 – 565 Watts, 3-ch amplifier

Number of channels 3
Amplifier class AB
Output power in 2 ohm 2 x 100 W RMS
Output power in 4 ohm 2 x 70 W RMS
Mono sub channel 2 ohm 365 W RMS
Mono sub channel 4 ohm 265 W RMS
Damping factor > 200
S/N ratio, A-weighted > 100 dB
Frequency range 10 Hz – 50 kHz
Input sensitivity 0,2 – 7 V
Input impedance < 10 kohm
Input impedance, high level 330 ohm
High level input with auto start Yes

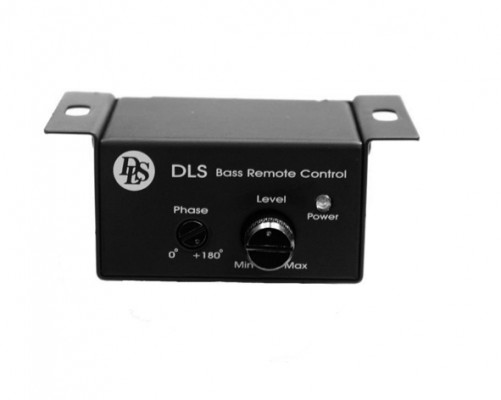

Remote bass level control Yes
Low level output No
Remote phase shift control Yes
Filters channel A & B HP: 45 – 125 Hz
Phase control for subwoofers 0-180 degrees variable
Filter sub channel LP: 40 – 125 Hz
Grand bass filter 0-18 dB @40 Hz
Power consumption (idle) 0,9 A
Power consumption (max) 70 A
Rec. power cable Minimum 4AWG / 21 mm2
Fuses 2 x 35 A
Dimension (W x D x H) 385 x 245 x 59 mm (15,15 x 9,65 x 2,33 inch)
Weight 4,4 kg ( 9,7 lb)
