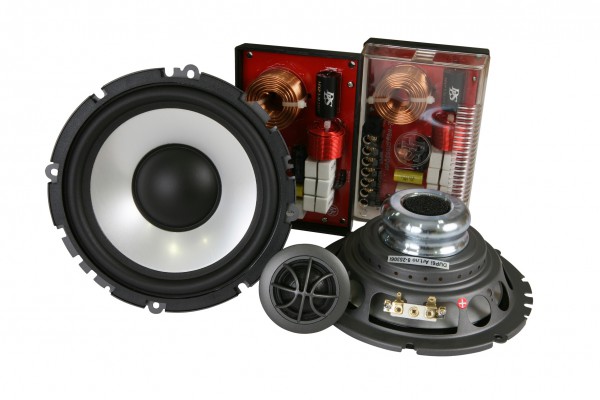

Ultimate series UP6i is a 16,5 cm (6,5″) 2-way component with an aluminum cone, a part of our Ultimate Hi-End series.
– Powerful hybrid neodymium/ferrite magnet system.
– Two-inch voice coil.
– Filter boxes with selectable tweeter levels in four steps.
– 28 mm silk dome tweeter UP1i.
– Grilles are included.
| Specifications |
| Woofer size | 165 mm ( 6,5″) |
| Tweeter | UP1i, 28 mm silk dome tweeter |
| Power handling capacity | 150 W RMS / 180 W max |
| Impedance | 4 ohm |
| Frequency range | 50 – 20 000 Hz |
| Sensitivity | 88 dB(1W/1m) |
| Crossover | Box filter with slope LP: 6 dB, HP: 12 dB |
| Crossover point (Hz) | 5000 Hz |
| Size of filter box | 145 x 95 x 45 mm ( 5,71 x 3,74 x 1,77″) |
| Outer diameter of woofer | 165 mm / 6,5″ |
| Magnet size | 62 mm (2,44″) hybrid ferrit/neodymium |
| Mounting depth | 63 mm (2,48″) |
| Mounting hole | 140 mm (5,5″) |
