| Number of channels | 1 |
| Amplifier class | AB |
| Output power in 1 ohm | 1200 W RMS |
| Output power in 2 ohm | 870 W RMS |
| Output power in 4 ohm | 500 W RMS |
| Damping factor | > 200 |
| S/N ratio, A-weighted | > 100 dB |
| Frequency range | 10 Hz – 125 Hz |
| Input sensitivity | 0,2 – 7 V |
| Input impedance, high level | N/A |
| Input impedance | > 10 kohm |
| High pass filter | Subsonic: 25 Hz |
| Low pass filter | 50-125 Hz |
| External cooling fan terminal | Yes |

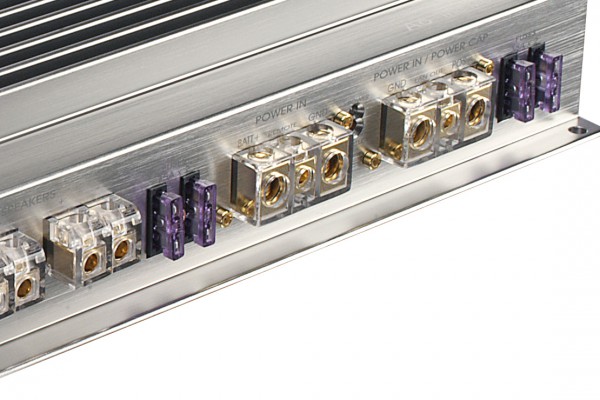

| Dual DC inputs | Yes |
| Low level output | No |
| Phase control for subwoofers | 0- 180 degrees cont. variable |
| High level input with auto start | No |

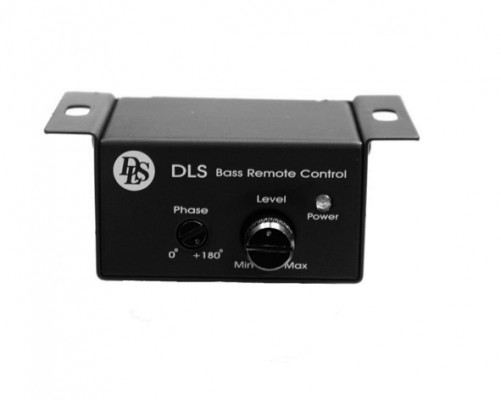

| Remote bass level control | Yes |
| Remote phase shift control | Yes |
| Integrated fan | Yes |
| Power consumption (idle) | 0,6 A |
| Power consumption (max) | 140 A |
| Rec. power cable | Minimum 2AWG / 33 mm2 |
| Fuses | 4 x 35 A |
| Dimension (W x D x H) | 410 x 240 x 73 mm (16,15 x 9,45 x 2,87 inch) |
| Weight | 6,2 kg ( 13,67 lb) |
