Reference R5A – 2-way component 5.25 inches

RRP $349

« Back to Products

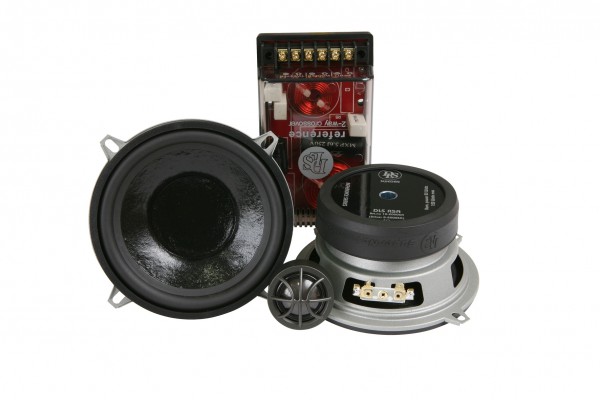

Reference series R5A is a 13 cm (5,25″) 2-way component.

The DLS Reference speakers will never fatigue your ears, and they offer an excellent listening experience that only a DLS speaker can provide. Being 80 watts RMS, these 2-way component speakers run great off a 2 or 4-channel amplifier for added clarity and response. The external crossover will separate high and low frequencies to their respective drivers. The 1″ tweeter offers very quick response combined with a subtle presence for an excellent all around sound. The paper cone material ensures a quality sound that you and your passengers will love. Try the DLS Reference Series for your next quality system and you will not regret your purchase.

  • Powerful magnet system.
  • Cone made of non pressed paper produces an excellent midrange and bass..
  • Crossovers with selectable tweeter level.
  • 25 mm silk dome tweeter T25

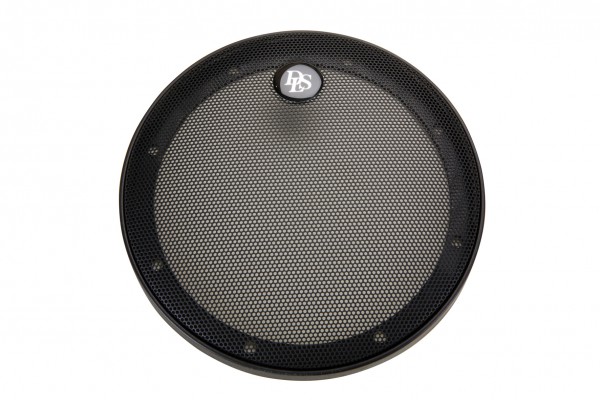

  • Grilles are included.
 Specifications
Woofer size 13 cm (5,25″)
Tweeter T25, 25 mm (1″) silk dome tweeter
Power handling capacity 80 W RMS / 120 W max
Impedance 4 ohm
Frequency range 55 – 20 000 Hz
Sensitivity 93 dB (1W/1m)
Crossover point (Hz) 4500 Hz
Size of filter box 145 x 85 x 45 mm ( 5,71 x 3,35 x 1,77″)
Outer diameter of woofer 130 mm (5,12″)
Magnet size 90 mm (3,54″)
Mounting hole 120 mm (4,72″)
Mounting depth 60 mm ( 2,36″)
Crossover Filter box with 6/12 dB slope (LP/HP)
