| Number of channels | 5 |
| Amplifier class | AB |
| Mono bridge mode 4 ohm | 2 x 200 W RMS |
| Output power in 2 ohm | 4 x 100 W RMS |
| Output power in 4 ohm | 4 x 60 W RMS |
| Mono sub channel output in 1 ohm | 600 W RMS |
| Mono sub channel 2 ohm | 440 W RMS |
| Mono sub channel 4 ohm | 300 W RMS |
| Frequency range | 10 Hz – 50 kHz |
| Damping factor | > 200 |
| S/N ratio, A-weighted | > 100 dB |
| Low level output | No |
| Input impedance, high level | N/A |
| High level input with auto start | No |
| Input sensitivity | 0,3 – 7 V |
| Input impedance | > 10 kohm |
| Filters channel A & B | HP: 80 – 400 Hz / 1,6 – 8 kHz (x20) |
| Filters channel C & D | HP: 80 – 400 Hz. LP: 0,3 – 4 kHz / 3 – 40 kHz (x10) |
| Filter sub channel | LP: 50 – 125 Hz |
| Phase control for subwoofers | 0-180 degrees cont. variable |
| External cooling fan terminal | Yes |

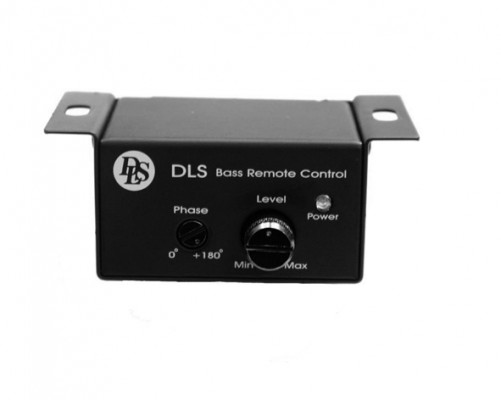

| Remote bass level control | Yes |
| Remote phase shift control | Yes |
| Power consumption (idle) | 1,1A |
| Power consumption (max) | 120 A |
| Rec. power cable | Minimum 4AWG / 21 mm2 |

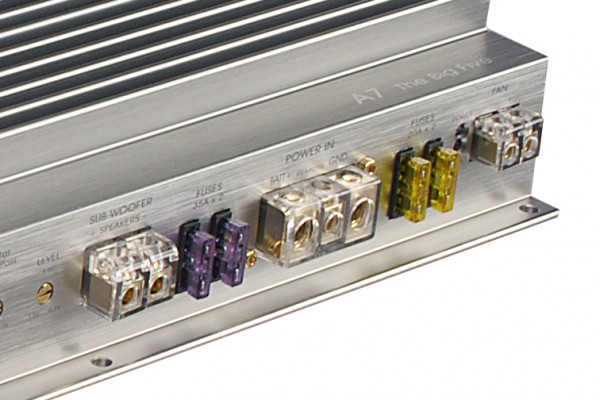

| Fuses | 2 x 35 A + 2 x 20 A |
| Dimension (W x D x H) | 605 x 240 x 73 mm (23,82 x 9,45 x 2,87 inches) |
| Weight | 8,1 kg ( 17,86 lb) |
